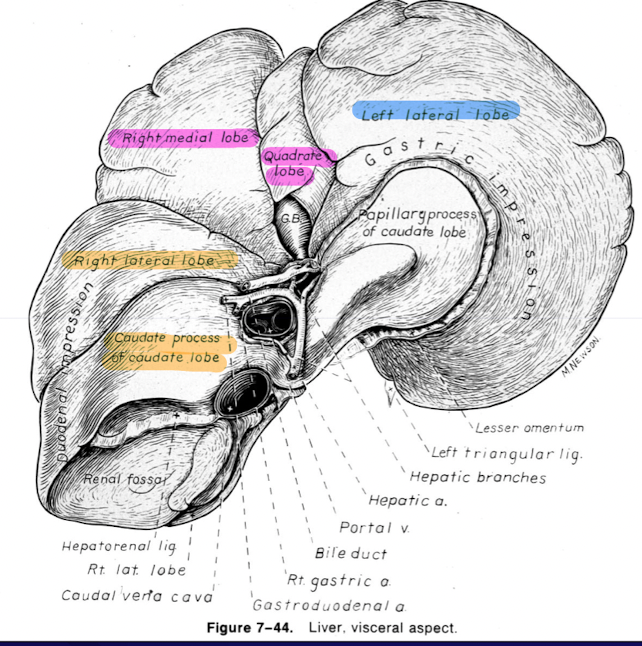

left divisional shunt
left:
left medial lobe
left lateral lobe
central:
right medial and quadrate
right:
right lateral lobe and caudate process of caudate lobe
right divisional shunt
left:
left medial lobe
left lateral lobe
central:
right medial and quadrate
right:
right lateral lobe and caudate process of caudate lobe
central divisional shunt
left:
left medial lobe
left lateral lobe
central:
right medial and quadrate
right:
right lateral lobe and caudate process of caudate lobe

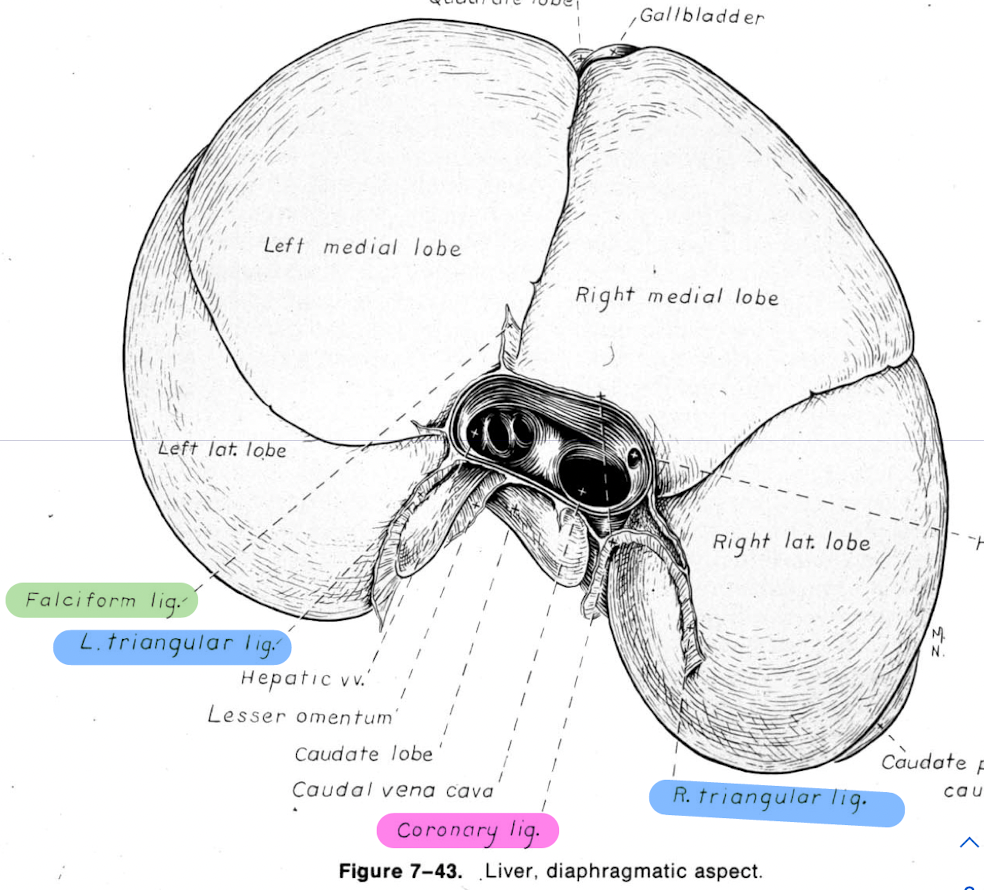

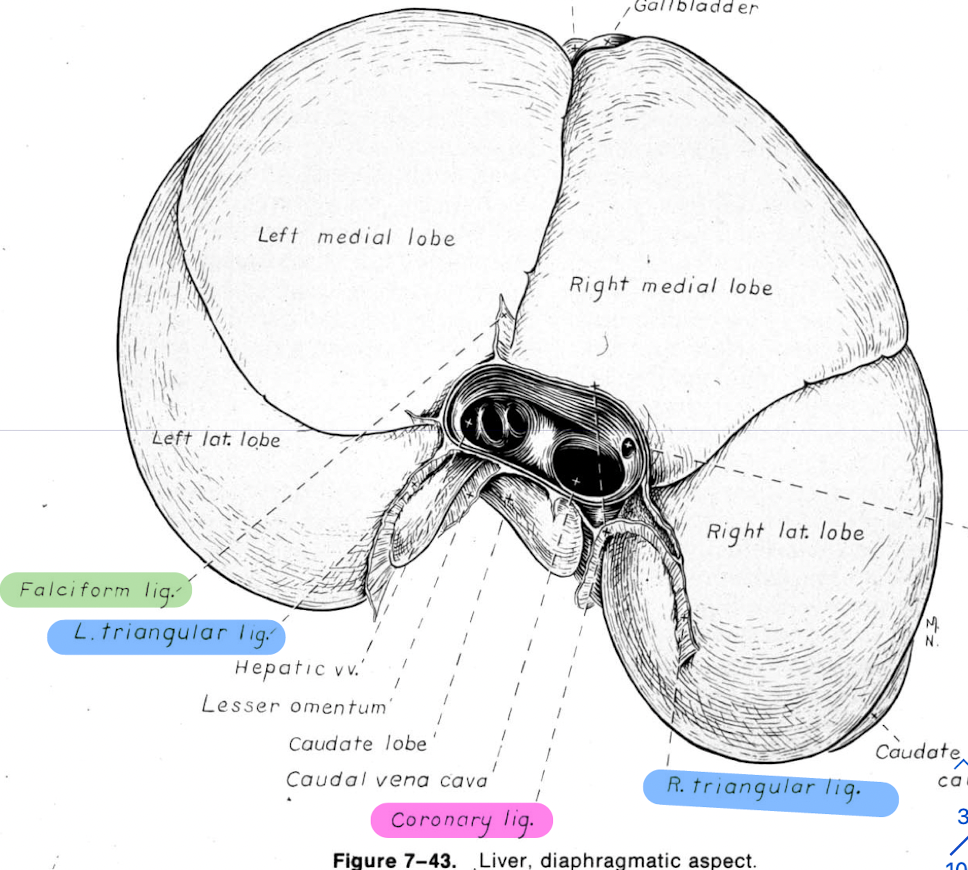

— ligament connect liver to diaphragm
right and Left triangular ligament
— ligament connect liver to foramen vena cava
coronary ligament
— ligament attaches to liver to the diaphragm and body wall
falciform

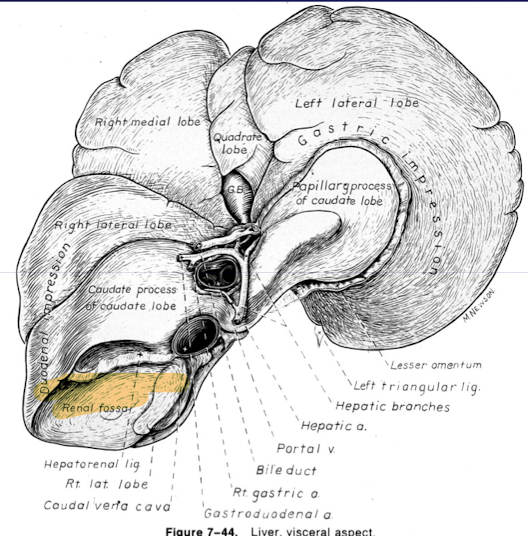

— attaches caudate lobe of liver to cranial pole of — kidney
hepatorenal ligament
Right

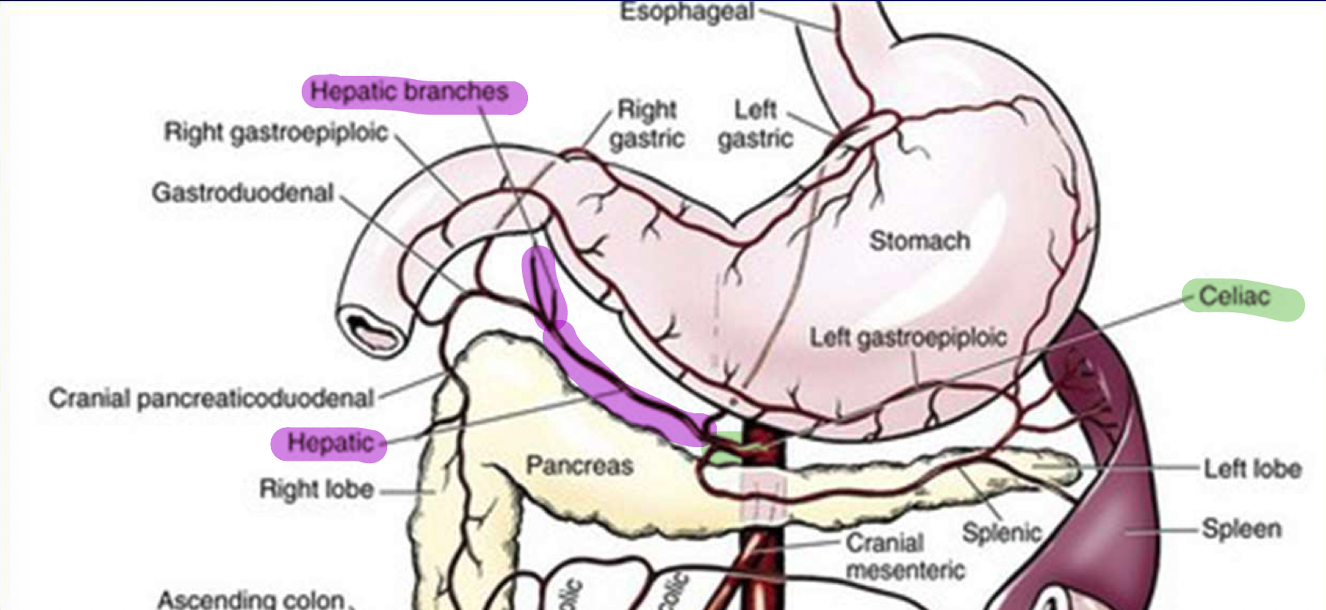

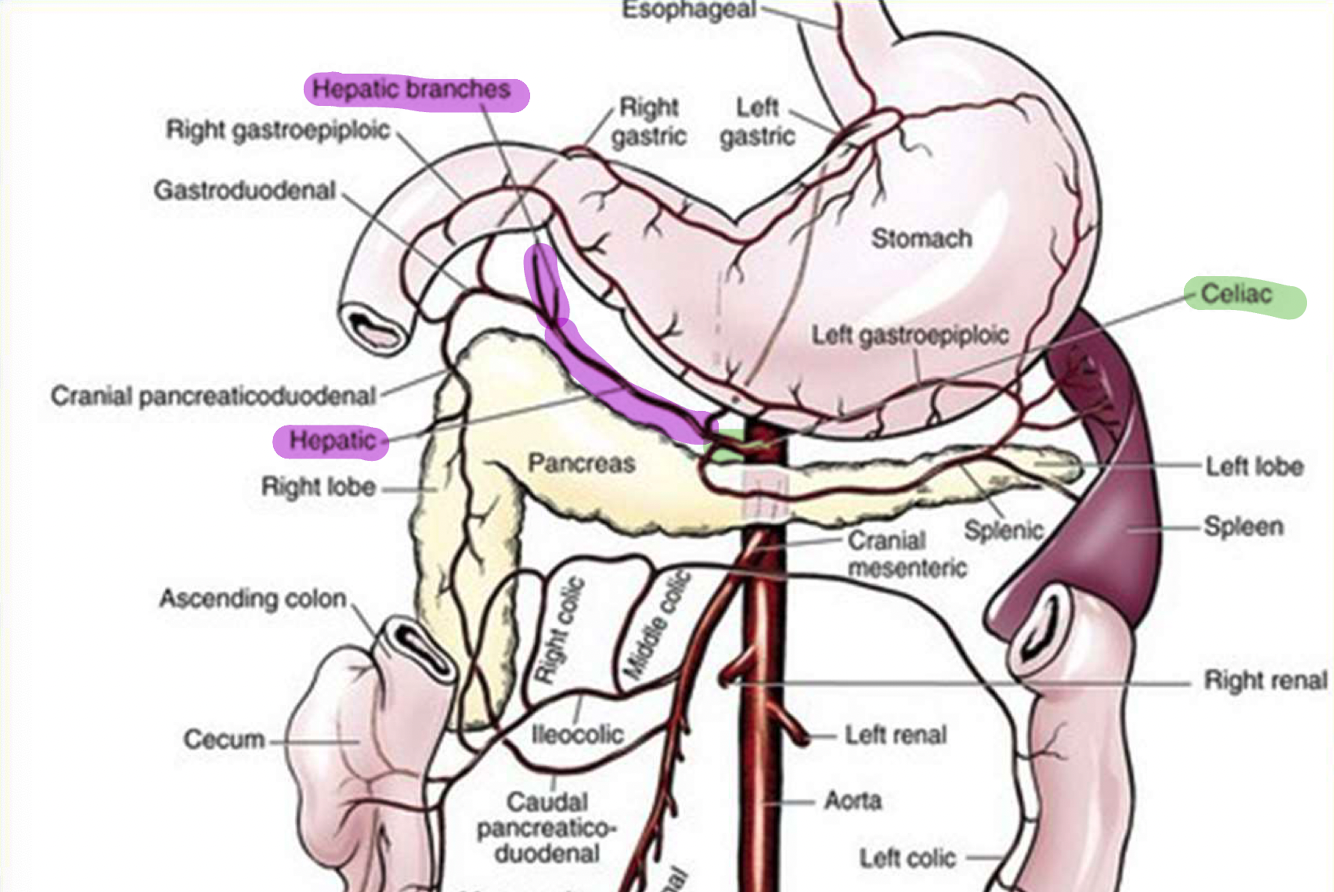

blood supply for hepatic artery is from
aorta - celiac - hepatic- hepatic branches
hepatic artery brings — % of blood flow to liver
20-25
* at low BP can increase to 60% to supply O2 to liver
aorta-celiac-hepatic-branches of hepatic
blood supply to portal vein in dogs vs cats
both:
- cranial and caudal mesenteric veins
- gastrosplenic veins
Dogs only: gastroduodenal vein!
portal vein supply —% of blood flow to liver
75-80
dogs have gastroduodenal vein
what does liver do
- Metabolism of lipids, carbs, proteins, vitamins
- hemostasis- coag factor
- protein production
- immunologic functions
- detox
PT and PTT for shunt pts
may be longer, but clinical bleeding not normal
- may resolve 6 weeks post sx
what bloodwork for shunts in dogs
- low albumin, globulin, cholestrol, glucose
- normal or elevated liver enzymes
- low BUN/creat
- low coags= high PT, PTT
- high ammonia (liver incharge of ammonia to urea)= low urea
(ABC glucose)
cats: low Creat, BUN
slight increase ALT,ALP
most common cause of intrahepatic shunt
patent ductus venosus (between aorta and liver)
most single extrahepatic shunts are
- congenital
- young small/toy breeds
- DSH, persians, himalayans
- from gastric or splenic veins
most single extrahepatic shunts are from the
from gastric or splenic veins

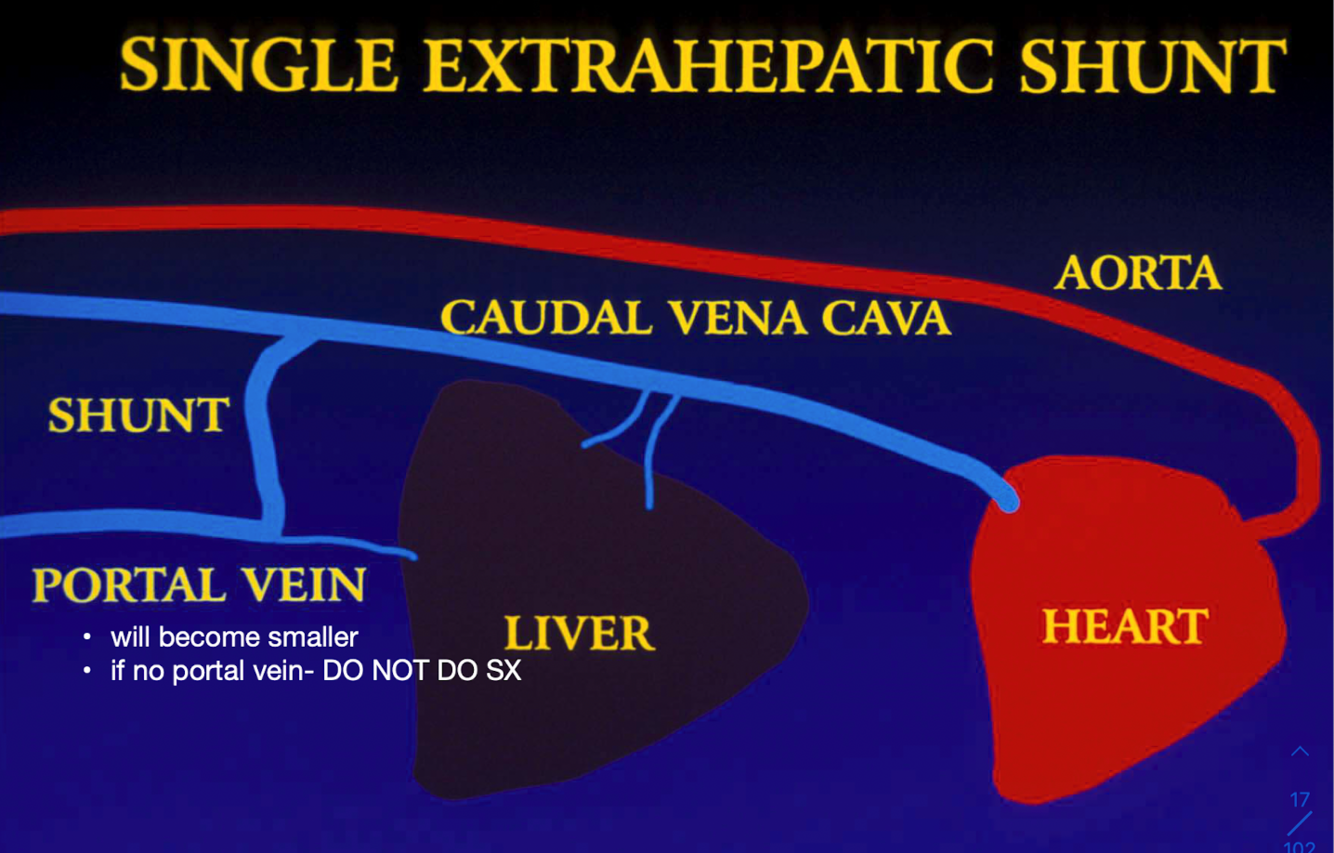

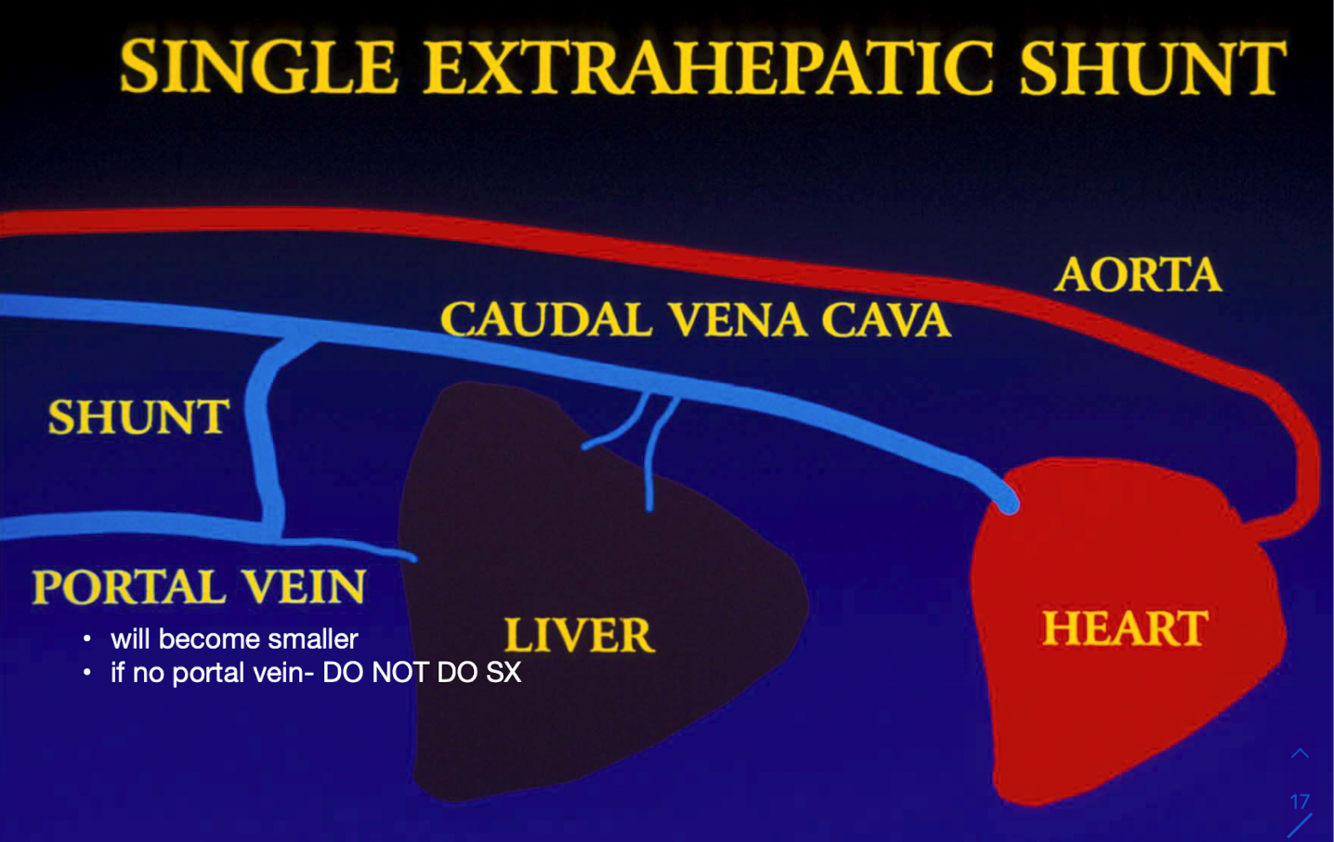

what happens to portal vein with single extrahepatic shunt
becomes smaller
usually form gastric or splenic veins in small toy breed dogs
intraheptic shunts usually occur in
large breed
congenital- most common patent ductus venosus

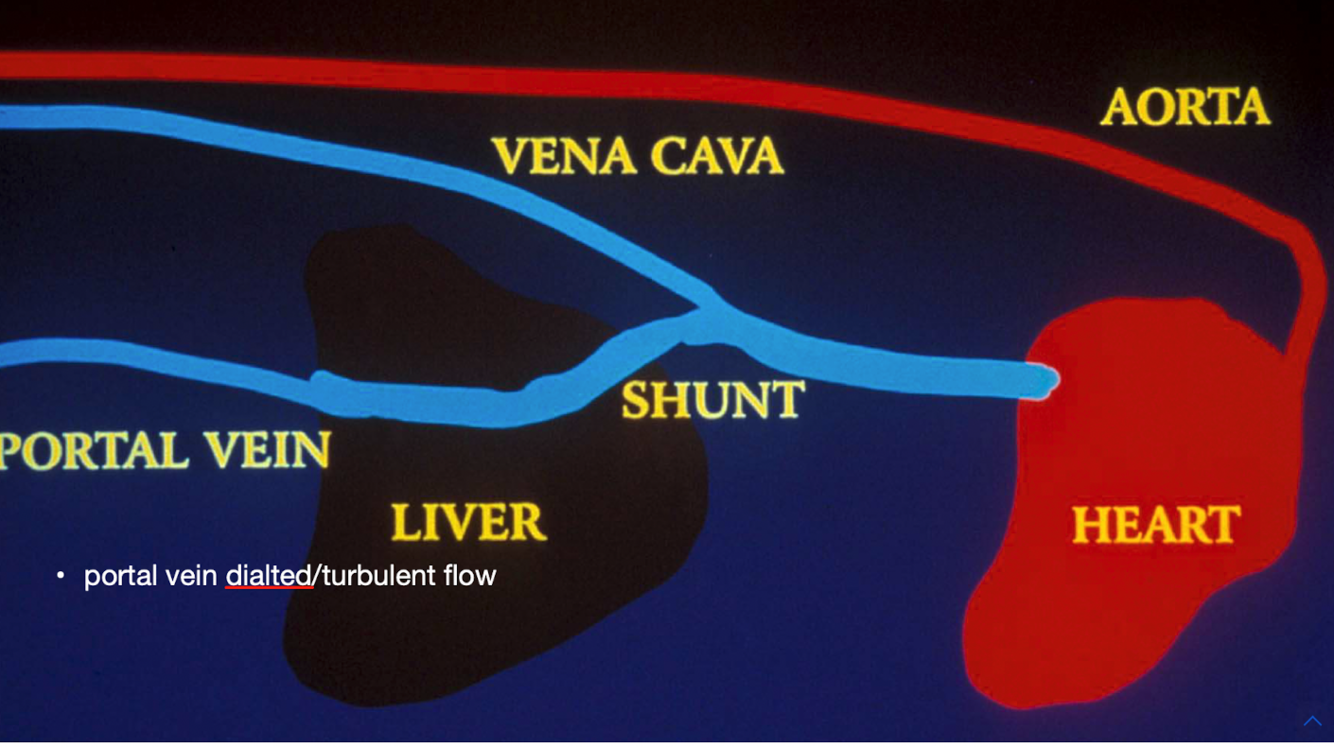

what happens to portal vein with intrahepatic shunt
dilated/ turbulent

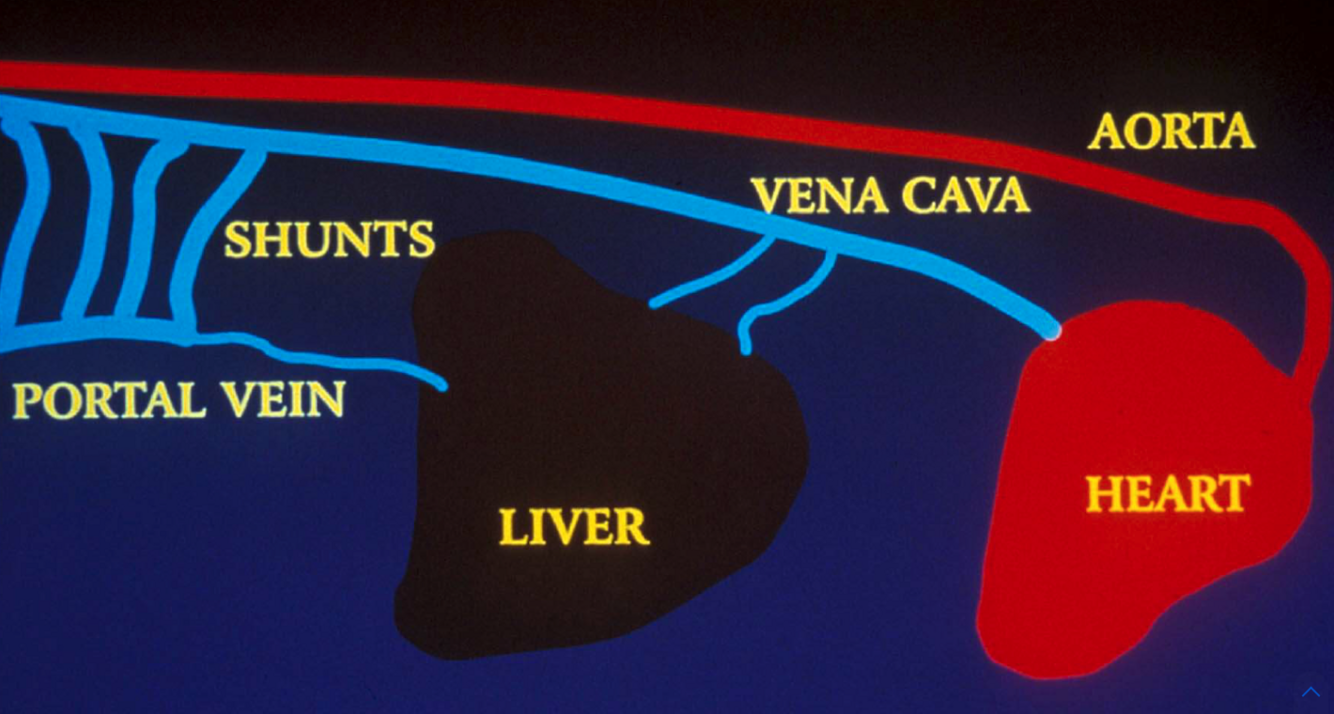

multiple extrahepatic shunts occur 2nd to
portal hypertension
- older dogs- end stage liver disease
- young animals- congenital hepatopathy or arteriovenous fistula
poor prognosis
what does portal vein look like in multiple extrahepatic shunts
older dogs- end stage liver disease → portal HTN
young dogs- congenital heptaopathy or AV fistula
what causes ascites with extrahepatic shunts
low albumin
( made in liver- decreased blood flow to liver= less albumin= less oncontic pressure = fluid leave vessels into tissues)
shunts in cats might have — eyes
copper colored iris
