The Heart and Circulation ( 25% ) Flashcards
(193 cards)
The most rapid conduction of electrical impulses occur in
- Atrial pathway
- AV node
- Bundle of His
- Purkinje system
- Ventricular muscle
- Atrial pathway - 1m/s
- AV node - 0.05m/s
- Bundle of His - 1m/s
- Purkinje system - 4 m/s
- Ventricular muscle - 0.3m/s
With regard to cardiac action potentials
- Cholinergic stimulation increases the slope of the pre-potential.
- The resting membrane potential is increased by X (vagal) stimulation.
- Phase O and phase I are the steepest in the AV node.
- The T wave is the surface ECG manifestation of phase I.
- The action potential in the AV node is largely due to calcium fluxes
The action potential in the AV node is largely due to calcium fluxes
- Cholinergic stimulation decreases the slope of the pre-potential.
- The resting membrane potential is decreased (hyperpolarised) by X stimulation.
- Phase O and phase I are flattest in the AV node (compared to other tissues in the heart), which is the cause of the slow conduction speeds
- The T wave is the surface ECG manifestation of repolarisation (phase 3)

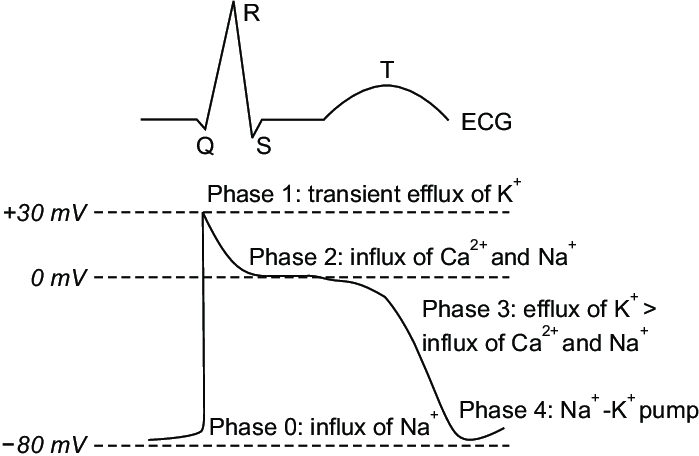

The cardiac action potential is divided into 5 phases, which of the following statements are true
- Depolarization phase (0) rapid exit of Na out of cells.
- Early rapid repolarisation phase (1) drop in membrane potential to -90mV.
- Plateau phase (2) slow exit of Ca out of cell
- Terminal phase of rapid repolarisation (3) membrane potential returns to 0mV.
- Period between action potentials (4) activation of Na/K pump
- Depolarization phase (0) rapid exit of Na Into cells
- Early rapid repolarisation phase (1) drop in membrane potential to 0mV
- Plateau phase (2) slow influx of Ca Into the cell (and K+ out)
- Terminal phase of rapid repolarisation (3) membrane potential returns to -90mV
- Period between action potentials (4) activation of Na/K pump

Which of the following is false regarding the structures of the cardiac conduction system
- The SA node is located at the junction of the SVC and the R atrium
- The AV node is located in the R posterior portion of the interatrial septum
- The internodal pathways containing 3 bundles of atrial fibres that contain Purkinje type fibres
- The Purkinje type fibres are normally the only conducting pathways between the atria and the ventricles
- The bundle of His divides in a left and right bundle branch.
- The SA node is located at the junction of the SVC and the R atrium
- The AV node is located in the R posterior portion of the interatrial septum
- The internodal pathways containing 3 bundles of atrial fibres that contain Purkinje type fibres
-
The Purkinje type fibres are normally the only conducting pathways between the atria and the ventricles
- AV node is the only conducting pathway - does not have Purkinje fibres as these are for fast conduction (though these lead to and from it)
- The bundle of His divides in a left and right bundle branch (The left bundle then subdivides into anterior and posterior fascicles)
which of the following normally has the steepest prepotential
- SA node.
- AV node
- Bundle of His
- Terminals of the Purkinje fibres
- Ventricular muscle mass
SA node.
If the others had a steeper prepotential, they would spontaneously discharge faster than the SAN and would become the heart’s pacemaker
which of the following is false regarding the pacemaker function of the cardiac conducting system
- in the normal human heart each beat originates in the SA node
- the heart rate in AV nodal block is approximately 45/min
- the heart rate in infranodal block is approximately between 15-35/min
- the atrial rate in AF is higher than the ventricular rate
- the HR is independent of the respiratory cycle
- in the normal human heart each beat originates in the SA node
- the heart rate in AV nodal block is approximately 45/min
- the heart rate in infranodal block is approximately between 15-35/min
- the atrial rate in AF is higher than the ventricular rate
-
the HR is independent of the respiratory cycle
- Sinus arrhythmia - HR increases with inspiration slightly due to variation in vagal activity with respiration
Which is false
- Rhythmicity in the SA node is primarily due to increased permeability to K
- The AV node delays passage of the impulse from the atria to the ventricles by approximately 0.13s
- The velocity of electrical impulse conduction through the atria is approximately equal to that through the ventricular muscle fibres
- The transmission time from endocardial to epicardial surface is approximately equal to that of the entire Purkinje system
- Action potentials can travel both ways through all tissues of the heart except the AV node
Rhythmicity in the SA node is primarily due to increased permeability to Na and K (funny channels)
Vagal stimulation of the SA node
- Leads to increased conductance of Ca ions into the cell.
- Leads to increased conductance of K ion into the cell.
- Leads to increased intracellular cAMP.
- Decreases the slope of the prepotential (phase 4 of the cardiac action potential)
- Inhibits the β1 receptors directly.
- Slows the opening of calcium channels
- Leads to increased conductance of K ion out of the cell (efflux -> hyperpolarisation)
- Leads to decreased intracellular cAMP (opposite of NA action of beta 1 receptors)
- Decreases the slope of the prepotential (phase 4 of the cardiac action potential)
- Inhibits the β1 receptors indirectly by inhibiting pre-synaptic release of NA
Which is true
- The resting membrane potential of ventricular muscle fibres is greater than that of the SA node
- The resting membrane potential of ventricular muscle fibres is greater than that of average resting peripheral nerve fibres
- The resting membrane potential of Purkinje fibres is less than that of the AV node
- The resting membrane potential of the SA node is equal to the AV node
- The resting membrane potential of average resting peripheral nerves is less than that of the SA node
Nick says D, seem E might be right, not in Ganongs
- The resting membrane potential of ventricular muscle fibres is greater than that of the SA node
- vent - -90mV, SA -55mV
- The resting membrane potential of ventricular muscle fibres is greater than that of average resting peripheral nerve fibres
- -90mV vs -70mV
- The resting membrane potential of Purkinje fibres is less than that of the AV node
-
The resting membrane potential of the SA node is equal to the AV node
- -55mV
- Have read SA = -50-60 and AV = -60-70
- The resting membrane potential of average resting peripheral nerves is less than that of the SA node
- -70mV vs -55mV
- ?this is right
Which is correct
- ACh increases cardiac conducting system fibres’ permeability to K which increases the slope of phase 4 and so increases the heart rate
- Noradrenaline increases Na and Ca permeability therefore increases HR by decreasing the negativity of the resting membrane potential and by increasing the slope of phase 4 (prepotential)
- The AV node and the Purkinje fibres do not function as the cardiac pacemakers because background X stimulation reduces their rate of firing to below the rate of the SA node.
- Nicotinic receptors in the SA node are responsible for increasing the resting HR in smokers.
- None of the above
- ACh increases cardiac conducting system fibres’ permeability to K (true) which decreases the slope of phase 4 and so decreases the heart rate
- Noradrenaline increases Na and Ca permeability therefore increases HR by decreasing the negativity of the resting membrane potential and by increasing the slope of phase 4 (prepotential)
- The AV node and the Purkinje fibres do not function as the cardiac pacemakers because Overdrive suppression means they fire at a fast rate than their innate rate - ie they are excited externally before they have a chance to reach their internal depol threshold
- Nicotinic receptors in the SA node are responsible for increasing the resting HR in smokers - wrong
- Nicotinic receptors (being parasympathetic) would cause bradycardia
Carotid sinus massage sometimes stops SVT because
- It decreases sympathetic discharge to the SA node
- It increases X discharge to the SA node
- It increases X discharge to the conducting tissue between the atria and the ventricles
- It decreases sympathetic discharge to the conducting tissue between the atria and the ventricles
- It increases the refractory period of the ventricular myocardium
It increases X discharge to the conducting tissue between the atria and the ventricles (aka the AVN)
- Carotid sinus afferent is IX -> NTS -> vagal afferents.*
- Vagal afferents act on the SAN (right vagus) and AVN (left vagus) to reduce HR and slow AVN conduction*
- Note aortic arch afferents are vagal*.
In this situation, slowing the SAN would not help, need to block the AVN to stop the arrhythmia.
In the cardiac action potential
- Initial rapid depolarization is due to opening of voltage gated K channels.
- Phase 2 is due to opening of Na channels.
- Phase 3 is due to the opening of K channels
- Extracellular potassium concentration is not important
- The magnitude is affected by external sodium concentration
The magnitude is affected by external sodium concentration
- Initial rapid depolarization is due to opening of voltage gated Na channels
- Phase 2 is due to opening of Ca channels
- Phase 3 is due to the opening of K channels
- Extracellular potassium concentration is not important

cardiac muscle contraction
- is in its absolute refractory period in the latter half of phase 3 and phase 4
- shows decrease in the number of cross bridges between actin and myosin (during descending limb of Starling’s curve)
- shows greater inotropism when catecholamines act on β1 adrenergic receptors
- shows increased contraction when digoxin stimulates Na/K ATPase.
- in Duchenne’s muscular dystrophy, shows hypertrophy but does not lead to cardiac failure
- is in its relative refractory period in the latter half of phase 3 and phase 4
- ARR is phase 0-> part way through 3
- shows increase in the number of cross bridges between actin and myosin (during descending limb of Starling’s curve)
-
shows greater inotropism when catecholamines act on β1 adrenergic receptors
- ie sympathetic B1 stimulation -> increased inotropy (duh)
- shows increased contraction when digoxin inhibits Na/K ATPase.
- Less Na efflux -> less Na/Ca cotransport -> maintain higher intracellular Ca concentrations
- in Duchenne’s muscular dystrophy, shows hypertrophy but does not lead to cardiac failure??
regarding conduction in the heart
- stimulation of right X inhibits the AV node.
- the rate of discharge of the SA node is independent of temperature.
- depolarization of ventricular muscle starts on the right.
- the speed of conduction is fastest in ventricular muscle.
- the SA node and the AV node exhibit the same speed of conduction
- stimulation of right X inhibits the SA node. (right = SA, left = AV)
- the rate of discharge of the SA node is dependent on temperature.
- hypothermia->bradycardia
- depolarization of ventricular muscle starts on the left
- the speed of conduction is fastest in Purkinje fibres
- the SA node and the AV node exhibit the same speed of conduction
In the cardiac action potential
- The resting membrane potential is -70mV.
- The initial depolarization is due to Ca influx.
- The plateau is due to the IKI current.
- The initial rapid repolarisation is due to the closure of Na channels
- cAMP decreases the active transport of Ca to the sarcoplasmic reticulum thus accelerating relaxation and shortening of the cycle
- The resting membrane potential is -90mV
- The initial depolarization is due to Na influx.
- The plateau is due to the Calcium influx (ICa) current.
-
The initial rapid repolarisation is due to the closure of Na channels
- Partly, also the opening of K+ channels
- cAMP decreases the active transport of Ca to the sarcoplasmic reticulum thus accelerating relaxation and shortening of the cycle
- ???increases number of fast Ca channels available -> faster influx of Ca
With respect to cardiac muscle action potential
- As HR increase the QRS duration decreases
- The absolute refractory period last from phase 0 to half way through phase 4.
- Relative refractory period begins halfway through phase 3
- Phase 1 is due to opening of voltage gated Na channels.
- Voltage gated Ca channels are activated at -50mV.
- As HR increase the QRS duration decreases - wrong
- The absolute refractory period last from phase 0 to half way through phase 3
- Relative refractory period begins halfway through phase 3
- Phase 1 is due to closure of voltage gated Na channels.
- Phase 0 is opening of voltage gated Na channels
- Voltage gated Ca channels are activated at 0-20mV
With respect to depolarization of the heart
- Atrial depolarization is complete in 100 ms
- AV nodal delay is 10 ms.
- AV nodal delay is lengthened by increasing sympathetic stimulation.
- Ventricular muscle depolarizes from the right
- The last area to be depolarized is the posterobasal portions of the RV
- Atrial depolarization is complete in 100 ms
- AV nodal delay is 160ms
- AV nodal delay is lengthened by increasing parasympathetic stimulation.
- Ventricular muscle depolarizes from the left
- The last area to be depolarized are the posterobasal portions of the left ventricle, the pulmonary conus, and the uppermost portion of the septum
The rate of the pacemaker cells in the heart can be slowed by all of the following except
- More negative diastolic potential
- Reduction of the slope of diastolic depolarization
- More positive threshold potential
- Prolongation of the action potential
- Increased phase 4 depolarisation slope
Increased phase 4 depolarisation slope
Lower slope = longer time to depol
action potential initiation in the SA and AV nodes results from
- Na influx
- K influx
- Ca influx
- Na and Ca influx
- Increased K conductance
Calcium influx
Only in the SA and AV nodes
All other muscle is Na
with respect to the cardiac action potential
- the plateau of repolarisation phase may be up to 200 times longer than the depolarization phase
- unlike the nerve action potential, there is no overshoot
the plateau of repolarisation phase may be up to 200 times longer than the depolarization phase
the slowest conducting type of cardiac tissue is
- bundle of His
- ventricular muscle
- Purkinje system
- Atrial pathway
- AV node
AV node
The action potential of cardiac pacemaker cells
- Is not affected by calcium current
- Is mainly due to sodium influx
- Shows decreased prepotential slope with sympathetic stimulation
- Exhibits a prepotential initially caused by decreased K efflux
- Show no spontaneous rhythmicity
- Is not affected by calcium current
- T channels open and allow Ca influx to finish the prepotential, then L channels open and produce the AP
- Is mainly due to calcium influx
- Shows increased prepotential slope with sympathetic stimulation
- Exhibits a prepotential initially caused by decreased K efflux
- Show no spontaneous rhythmicity
- All cardiac cells have spontaneous rhythmicity, at different rates
With regard to the 12 lead ECG
- Lead II is at 90 degrees for vector analysis.
- 130 degrees is still a normal cardiac axis.
- the standard limb leads record the potential difference between 2 limbs
- V2 is placed in the 3rd interspace.
- Septal Q waves are predictable in V2.
- Lead II is at 120 degrees for vector analysis.
- 130 degrees is Right axis
- Normal is -30 - +110
- 130 degrees is Right axis
- the standard limb leads record the potential difference between 2 limbs
- V2 is placed in the 4th interspace (same for V1-3), 5th for V4
- Septal Q waves are not predictable in V2.
- No Q-wave in V1-2 (ie QRS is initially an upward deflection as septum depolarises from left to right and therefore towards V1 and 2)
- Q-wave represents septal depolarisation, and V1+2 look at the septum directly, so do not record a voltage change
Which of the following is false regarding the waves of the ECG
- The P wave is produced by atrial depolarization
- The Q wave is produced by atrial repolarisation
- The QRS complex is produced by ventricular depolarization
- The T wave is produced by ventricular repolarisation
- The U wave is probably produced by slow repolarisation of the papillary muscle
The Q wave is produced by septal depolarisaiton (hence is not seen in the septal leads V1+2)
