4A5 Electrical Potential Flashcards

Explain the sources and processes required to generate electrical potential and electromotive force. (58 cards)

1
Q

Define:

Electrical potential

A

It is the potential energy per unit charge at a point in an electric field.

Electrical potential is measured in volts (V).

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

Fill in the blank:

A ______ converts chemical energy into electrical energy.

A

battery

Batteries store chemical energy for direct current (DC) applications.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

Define:

Electrode

A

Conductor that allows electrical current to enter or leave a device or medium, such as a battery or electrochemical cell.

It can be either an anode or a cathode.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

What is the purpose of a battery electrolyte?

A

It allows the flow of ions between electrodes to sustain chemical reactions.

Common electrolytes include sulfuric acid in lead-acid batteries.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

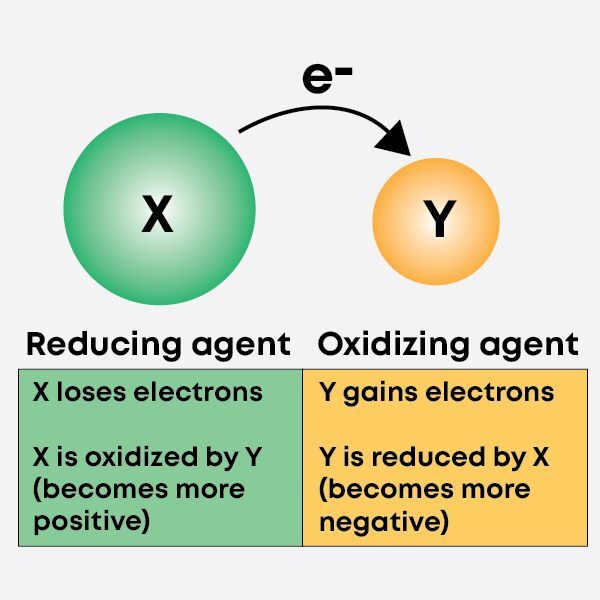

What is a redox process?

A

It involves two simultaneous reactions: oxidation, where a substance loses electrons, and reduction, where a substance gains electrons.

This process is crucial for chemical reactions, energy storage in batteries, and electrochemical applications.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

Fill in the blank:

In a battery, the anode electrode is where _______ occurs.

A

oxidation

The anode releases electrons during oxidation.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

What is the role of the cathode in a battery?

A

It is the electrode where reduction occurs, and electrons flow toward it during discharge.

In rechargeable batteries, the cathode and anode switch roles during charging.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

Fill in the blank:

In a zinc-carbon battery, zinc serves as the _______, undergoing oxidation by releasing electrons.

A

anode

The zinc atoms lose electrons, forming zinc ions (Zn²⁺) and providing current flow.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

What is a lead-acid battery?

A

A rechargeable battery that uses lead and lead dioxide plates submerged in sulfuric acid.

Common in cars.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

Define:

Dry cell

A

Type of battery with a paste electrolyte instead of liquid.

Alkaline batteries are common examples.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

Why are alkaline batteries preferred for portable electronics?

A
  • Lightweight
  • Stable voltage
  • Long shelf life

They are more environmentally friendly than older battery types.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

What happens when you connect two batteries in parallel?

A

The total voltage remains the same, but the current capacity increases.

Parallel connections are ideal for extending battery life.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

How would you connect batteries to increase electrical potential in a circuit?

A

Connect them in series.

In series, the voltages of the batteries are summed.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

How does temperature impact battery performance?

A

High temperatures shorten battery life, while low temperatures reduce performance and efficiency.

Lithium-ion batteries are sensitive to temperature changes.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

Describe how a flashlight battery provides electrical potential.

A

By converting chemical energy into electrical energy to power the bulb.

Flashlights often use dry cell batteries.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

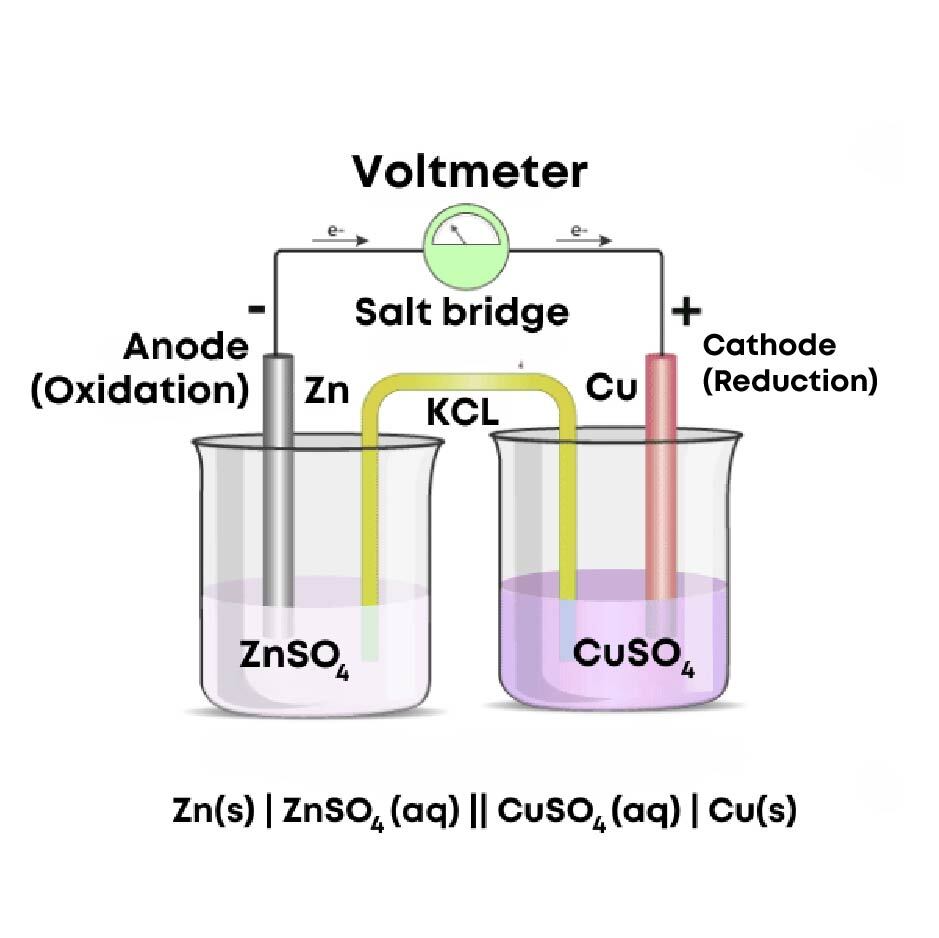

What is the purpose of a salt bridge in a battery?

A

It maintains electrical neutrality by allowing the flow of ions between the two half-cells.

It prevents the accumulation of charge that would stop the reaction.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
17
Q

Fill in the blank:

In a rechargeable battery, energy is supplied to _______ the chemical reactions, restoring the battery’s capacity.

A

reverse

This reversal restores the original chemical composition, allowing the battery to store and release energy again.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
18
Q

What happens when a battery’s chemical reactants are fully consumed?

A

The battery stops generating electrical energy, as no further redox reactions can occur.

This is why disposable batteries eventually lose their charge and must be replaced.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
19
Q

True or false:

Photocells generate electrical potential by converting heat into electricity.

A

False

Photocells convert light, not heat, into electricity.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
20
Q

What are the main components of a photocell?

A
  • Semiconductor layer
  • Electrodes
  • Encapsulation layer
  • Anti-reflective coating

Photocells are also known as photovoltaic cells.

Semiconductor layer: Absorbs light and generates electron-hole pairs.

Electrodes: Collect the generated current.

Encapsulation layer: Protects the cell from environmental damage.

Anti-reflective coating: Increases light absorption efficiency.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
21
Q

Why can’t a solar panel generate electricity in the dark?

A

Photocells require light to release electrons and produce current.

Solar panels are ineffective without light sources.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
22
Q

Describe a situation where a photocell could be more effective than a battery.

A

In outdoor applications with abundant sunlight, such as solar garden lights.

Photocells are renewable but weather-dependent.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
23
Q

How does increasing the surface area of a photocell affect its efficiency?

A

It allows more light to be captured, generating higher electrical potential.

Surface design is critical for solar panel efficiency.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
24
Q

Define:

Electric generator

A

A device that converts mechanical energy into electrical energy through electromagnetic induction.

Generators are essential for producing electricity in both large power grids and portable applications.

25
How does **electromagnetic induction** work in generators?
Generators produce electricity by **moving a conductor through a magnetic field,** inducing an electromotive force (EMF) according to Faraday's Law. ## Footnote The magnitude of EMF depends on the speed of motion, strength of the magnetic field, and number of coil turns.
26
Why are **generators** important in **power plants**?
They provide the **main source of electrical potential** for power distribution. ## Footnote Turbines, powered by steam, water, or wind, rotate generator coils to induce electricity.
27
List the key **components** of a **generator** and their functions.
* **Rotor**: Rotates to produce a magnetic field. * **Stator**: Contains the coil where EMF is induced. * **Brushes**: Maintain electrical contact with the rotating parts. * **Slip rings**: Transfer current between rotor and external circuit. ## Footnote Generators convert mechanical energy into electrical energy.
28
Only **mechanical energy** sources can drive a **generator**.
False ## Footnote Generators can also use thermal and hydraulic energy.
29
How can **generators** be classified?
* The **type of current** they produce: AC (alternating current) or DC (direct current). * The **energy source** used, such as hydroelectric, wind, or solar energy. ## Footnote Classification helps identify the most suitable generator for specific energy needs.
30
List different types of **generators** based on their **energy source**.
* Hydroelectric Generator: Powered by water flow. * Wind Generator: Converts wind energy. * Solar Thermal Generator: Uses solar heat. * Fuel-Based Generator: Relies on fossil fuels. ## Footnote Each type of generator is optimized for specific environmental or economic conditions.
31
How would a **faulty battery** affect the electrical potential of a circuit?
It would **reduce or completely stop** the flow of current. ## Footnote Battery degradation reduces charge efficiency.
32
# True or false: Generators require **brushes** to maintain electrical contact.
True ## Footnote Brushes transfer current from the rotating coil to the circuit.
33
# Fill in the blank: **Generators** typically produce \_\_\_\_\_\_ current.
alternating (AC) ## Footnote AC can be transmitted over long distances with less loss.
34
# Fill in the blank: **EMF** is often described as the \_\_\_\_\_\_ of a **power source**.
voltage ## Footnote EMF represents the maximum potential difference across a power source.
35
# True or false: EMF always results in a **current flow** in a circuit.
False ## Footnote Current flows only when there is a complete circuit and a load connected.
36
What is the **unit** of electromotive force (EMF)
Volts (V) ## Footnote It shares the same unit as potential difference.
37
What is the relationship between **EMF** and **internal resistance**?
EMF is the **sum of the terminal voltage** and the voltage drop across the internal resistance. ## Footnote Internal resistance reduces the usable voltage in a circuit.
38
# Fill in the blank: **EMF** in a **generator** depends on the strength of the \_\_\_\_\_\_\_ \_\_\_\_\_\_ and the speed of rotation.
magnetic field ## Footnote Stronger magnetic fields and faster rotations generate higher EMF.
39
How can **EMF** be increased in a generator?
* Increase the speed of rotation. * Use stronger magnets. ## Footnote Coil design can also affect EMF production.
40
# True or false: The **magnitude of EMF** is directly proportional to the **number of turns in a coil**.
True ## Footnote According to Faraday’s Law, EMF is proportional to the rate of change of magnetic flux times the number of turns.
41
How is **electromotive force (EMF)** calculated?
EMF=V+Ir ## Footnote where V is the terminal voltage, I is the current, and r is the internal resistance of the source.
42
How is **EMF** different from **potential difference**?
* EMF is the **total energy** provided by a source. * Potential difference is the **energy used between two points** in a circuit. ## Footnote Internal resistance reduces the effective voltage available.
43
A battery has an EMF of **12V** and an internal resistance of **1Ω**. What is the terminal voltage when the current is **2A**?
10V ## Footnote Terminal voltage = EMF - (Current × Internal Resistance).
44
# Fill in the blank: **EMF** is represented by the **symbol** \_\_\_\_\_\_.
ε (epsilon) ## Footnote EMF is often denoted by ε in equations.
45
# Fill in the blank: The \_\_\_\_\_\_ \_\_\_\_\_ of a power source generates **EMF**.
chemical reaction | (or magnetic induction) ## Footnote Batteries use chemical reactions; generators use electromagnetic induction.
46
# True or false: **EMF** can be generated without any **external input**.
False ## Footnote EMF always requires a source of energy, such as chemical, solar, or mechanical energy.
47
# Define: Back EMF
EMF induced in a motor that **opposes the applied voltage**. ## Footnote Back EMF occurs due to the motor's rotation.
48
# Fill in the blank: **Back EMF** is essential for controlling the \_\_\_\_\_\_ of an electric motor.
speed ## Footnote Higher back EMF reduces the net voltage driving the motor.
49
What does **Faraday’s Law** of Electromagnetic Induction state?
The induced **electromotive force (EMF)** in a closed circuit is directly proportional to the rate of change of magnetic flux through the circuit. ## Footnote EMF= - ΦB/dt, where ΦB is the magnetic flux, and the negative sign follows Lenz’s Law, indicating the direction of the induced EMF opposes the change in flux.
50
Why does **EMF decrease** as a **battery discharges**?
The **chemical energy** available for conversion decreases, increasing **internal resistance**. ## Footnote Battery aging also contributes to EMF reduction.
51
What is the role of **EMF** in **solar cells**?
EMF is generated when photons displace electrons, creating potential difference. ## Footnote Solar cells convert light directly into electrical energy.
52
# True or false: A **dead battery** has zero EMF.
False ## Footnote It may still have a small EMF but insufficient to provide current.
53
What is the source of **EMF** in a **thermocouple**?
Temperature difference between two dissimilar metals. ## Footnote Thermocouples are used in temperature sensors.
54
# True or false: **EMF** can only be generated by **batteries**.
False ## Footnote EMF can come from batteries, generators, solar cells, and more.
55
How does a **fuel cell** maintain a **stable EMF**?
By continuously supplying fuel and maintaining proper chemical conditions. ## Footnote Fuel cells are efficient but require constant fuel input.
56
What happens when **internal resistance** in a **battery** becomes too high?
The terminal voltage drops, reducing circuit performance. ## Footnote High internal resistance indicates battery degradation.
57
How does a **rechargeable battery** maintain its **EMF** after multiple cycles?
It relies on **reversible chemical reactions** during charging and discharging. ## Footnote Over time, efficiency decreases.
58
Why is **EMF** important in understanding **power systems**?
It determines the maximum voltage available for work in a circuit. ## Footnote Efficient power generation relies on maintaining consistent EMF.
