Basic Continuous Time Signals - Waveform Properties

Question 1

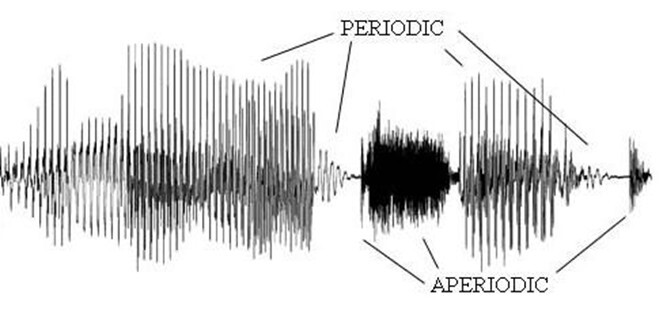

What is the difference between periodic and nonperiodic waveforms?

Answer 1

Periodic waveforms repeat over time, while nonperiodic waveforms do not exhibit a repeating pattern.

Question 2

How do you determine the frequency of a periodic waveform?

Answer 2

The frequency can be determined using the formula f0 = 1/T0, where T0 is the period.

Question 3

What are the basic waveform types you should be able to sketch?

Answer 3

• Unit step
• Unit ramp
• Rectangle
• Impulse

Question 4

What transformations can be applied to waveforms?

Answer 4

• Time-shifted
• Time-scaled
• Time-reversed

Question 5

What is the sampling property of an impulse?

Answer 5

It can be used to compute an integral with the delta function.

Question 6

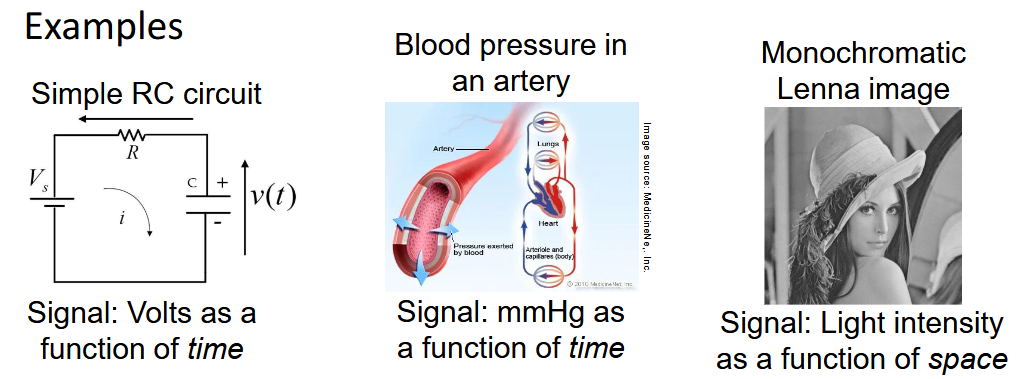

Define a signal.

Answer 6

A signal is a physical quantity varying in time, space, or both.

Question 7

What are the classifications of signals?

Answer 7

• Continuous vs. Discrete
• Analog vs. Digital
• Causal vs. Non-causal
• Unidimensional vs. Multidimensional

Question 8

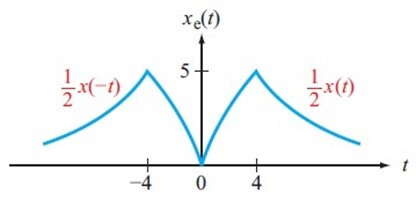

What is even symmetry in signals?

Answer 8

A signal is even if it is symmetric with respect to the vertical axis: x(t) = x(-t).

Question 9

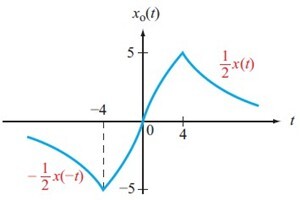

What is odd symmetry in signals?

Answer 9

A signal is odd if the shape on the left-hand side of the vertical axis is the inverted mirror image of the right-hand side: x(t) = -x(-t).

Question 10

How can any signal be expressed?

Answer 10

Any signal can be expressed as the sum of its even and odd parts.

Question 11

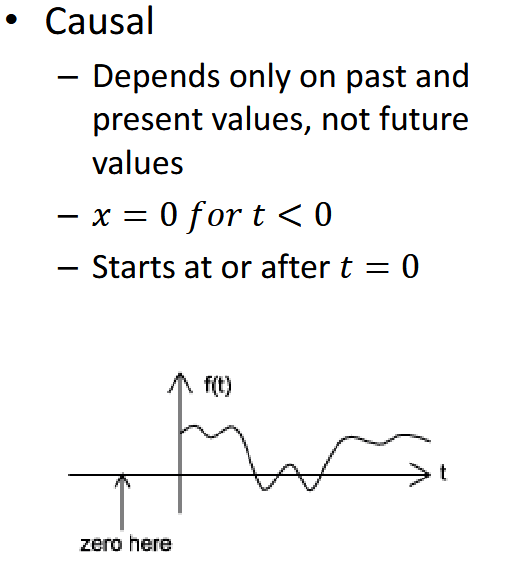

What is a causal signal?

Answer 11

A causal signal occurs after t = 0 and depends only on present and past inputs.

Question 12

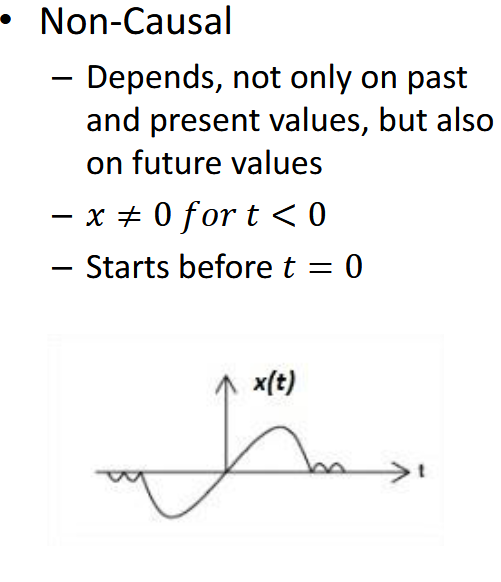

What is a non-causal signal?

Answer 12

A non-causal signal depends on future inputs.

Question 13

What is the correct notation for time scaling?

Answer 13

The correct notation is x(at), where scaling and reversing are done before time shifting.

Question 14

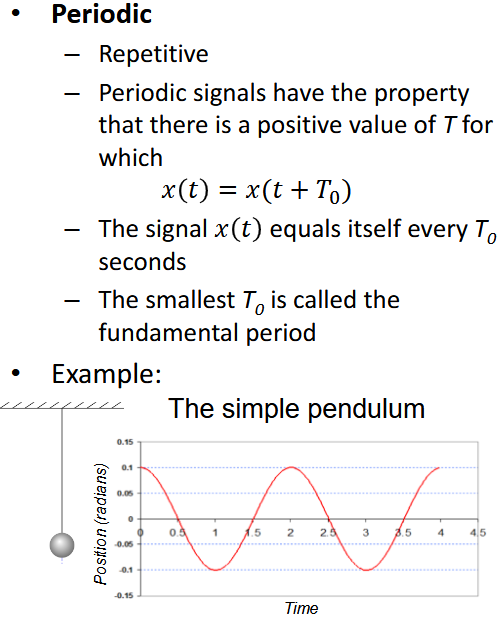

What defines a periodic signal?

Answer 14

A periodic signal satisfies x(t) = x(t + T0) for some positive value T0.

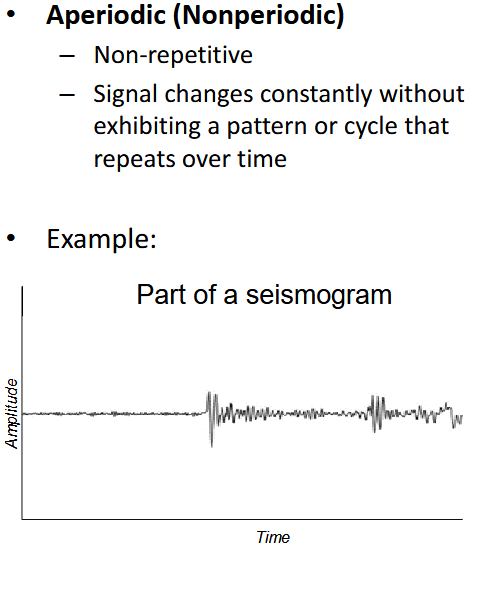

Question 15

What are the characteristics of aperiodic signals?

Answer 15

Aperiodic signals change constantly without a repeating pattern.

Question 16

What is a unit step function?

Answer 16

The unit step function u(t) is defined as: * 1 for t ≥ 0
* 0 for t < 0.

Question 17

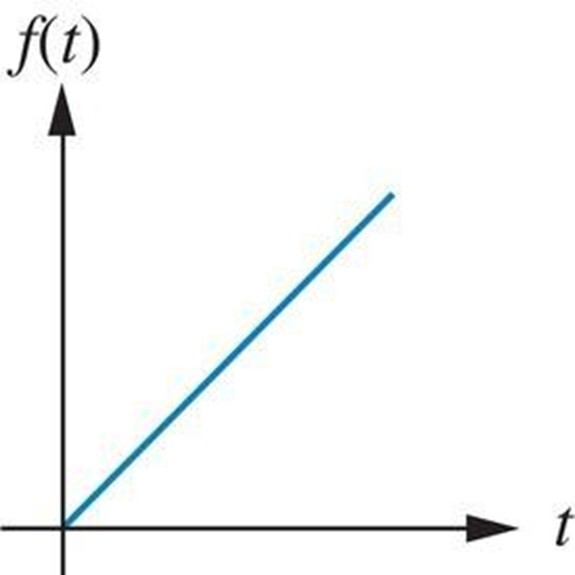

What is a ramp function?

Answer 17

A ramp function r(t) is defined as: * t for t ≥ 0
* 0 for t < 0.

Question 18

What is the relationship between a ramp function and a step function?

Answer 18

The ramp function can be derived from the step function: r(t) = ∫u(t) dt.

Question 19

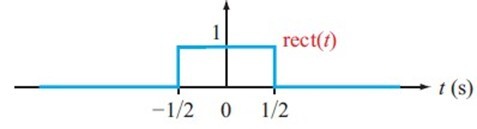

What is a pulse waveform?

Answer 19

A pulse waveform is defined as having a specific duration, often represented using the rect function.

Question 20

How is a rectangular pulse waveform expressed in terms of step functions?

Answer 20

v_a(t) = u(t - (T - τ/2)) - u(t - (T + τ/2)).

Question 21

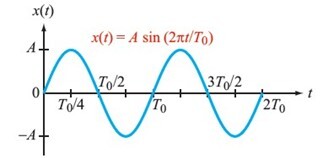

What is the significance of the period T0 in sinusoidal signals?

Answer 21

T0 is the time it takes for the sinusoidal signal to repeat itself.

Question 22

True or False: Most signals are either even or odd.

Answer 22

False. Most signals are neither even nor odd.

Question 23

What is the formula to determine the period from frequency?

Answer 23

The period T0 = 1/f0, where f0 is the frequency.

Question 24

What is the relationship between amplitude and periodicity in sinusoidal functions?

Answer 24

The amplitude is the maximum value of the sinusoidal function, while periodicity is defined by its repeating cycle.
