Lec 2/ TB Ch 5

Question 1

• 5 main features of speech perception

Answer 1

• 1. sound patterns are converted to neural signals
     * Ex. phonemes

     • /r/ and /l/ are easily noticed by Eng native speakers, difficult for Japanese speakers
• 2. need to be sensitive to subtle cues, but also accommodate individuals diff among talkers
     * Ex. we need to distinguish “goat” from “coat”
• 3. identify subtle boundaries b/w words
     * i.e. silent pauses b/w words
• 4. comprehend speech at high speed
     * rate of phoneme processing is fast

     • Causal speech: 10-15 phonemes/s
     • Fast speech: 20-30 phonemes/s
     • Artificially accelerated speech: 40-50 phonemes/s
• 5. There’s systems that analyze grammar, semantics, motor systems for articulation

Question 2

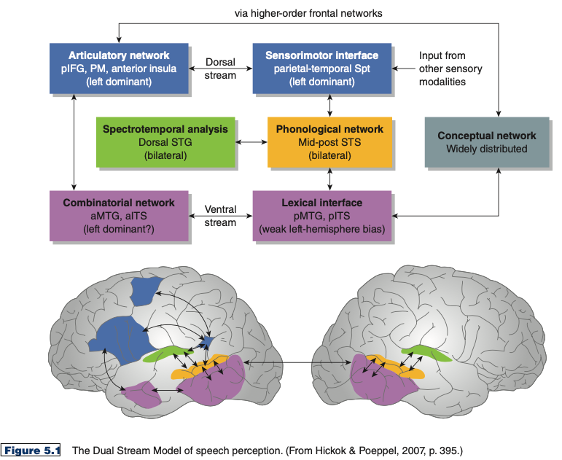

dual stream model

• Location of initial stages of speech perception
• 2 streams for further processing

Answer 2

• 1 initial stages of speech perception happens in superior temporal regions
• 2 processing splits into 2 streams

  • Ventral stream: processing in other temporal area; comprehension

    • I.e. Map sound onto meaning
  • Dorsal stream: processing in temporoparietal and frontal areas; auditory-motor transformations

    • i.e. Map sound onto action

Question 3

Basic Properties of Speech Sounds

• General path - 4 parts
• 2 Parts in larynx
• whisper vs normal speech
• What is pitch based on?
• vocal tract

  • location
  • 4 chambers
  • What influences their resonance range
  • Fx of chambers
  • fx of articulatory

    • 3 articulators
• Evolved part in humans that allow for speech
• Avg # of vowels
• Avg # of consonants
• Coarticulation

Answer 3

• General path for speech: air from lungs → trachea (windpipe) → larynx (voice box) → vocal tract
• Larynx: glottis (opening) + vocal folds (2 flaps of retractable muscle tissue)

  • whisper speech: vocal folds spread apart, sounds like hissing (sss)
  • normal speech: vocal cords stretched over the glottis, sounds like a buzz (zzz)
  • pitch is based on vocal fold vibrating frequency
  • Sound is not a pure tone, it has many harmonics
• Vocal tract: abv larynx, 4 chambers

  • Pharynx (throat)
  • Nasal cavity
  • Oral cavity
  • Opeaning b/w lips
• Each chamber has unique shape → determine their resonance range
• Each chamber = filter: allow/block specific sound frequencies
• 3 articulators that can modify resonance in each chamber

  • Velum (soft palate): opens/closes nasal cavity
  • Tongue body, tip, root
  • Lips
• Evolved human anatomy for speech

  • b4: tongue can’t move in oral cavity → can’t create vowels
  • now: larynx shifted down, so the tongue can move vertically and horizontally → can create vowels
• • phonemes hv distinctive features

    • Ex. diff vowels (max 15 in German; avg = 5)
• Consonants hv distinctive features

  • Ex. max 120 of consonants (avg = 20)
• Language rules vary
• Coarticulation: if phonemes are articulated w/ diff body parts, we smooth them together to make it more efficient (ex. communicate faster)

  • Ex. /n/, /d/ are articulated at alveolar bridge; but are articulated at the teeth for “month/width”

    • This is b/c we anticipate the th sound

Question 4

• first 2 stages of dual stream model
• spectrotemporal analyses
• 2 ways the stages are organized

  • Hierarchical

    • 3 lvs
    • 2 aspects of phonemes
    • 2 parts of syllables

      • 2 sub-parts in Rime
• Monkey tonal screams study

  • hypothetical hierarchical neural network for monkey speech perception
  • 3 lv

    • lv 1: 2 steps
    • lv 2: 2 steps
    • lv 3: 2. steps
    • What is Δt1?
  • What type of pathway?
  • Location?
  • How is it diff from the human one?

Answer 4

Early Cortical Stages of Speech Perception

• 1. primary auditory cortex at Heschl’s gyrus & dorsal superior temporal gyrus conduct spectrotemporal analyses
     * spectrotemporal (waves & time) analyses: receive info from thalamus, extract info about the stimuli frequency and what rate the stimuli is in
• 2. send info to the phonological network (STS) to calculate the frequency and rate
• These 2 stages of speech perception are organized hierarchically and bilaterally

Hierarchical Organization

• Speech patterns are complex auditory stimuli; the structure has multiple levels
• 1. Segmental structure lv - phoneme
     * Ex. cat has 3 phonemes: /k/, /æ/, and /t/
     * Each phoneme 2 aspect acoustic (sound) and articulatory (use specific muscles) aspects
• 2. Syllabic structure - CVC
     * CVC structure: consonant-vowel-consonant
     * 2 parts

     • 1. Onset: consont /k/
     • 2. Rime: remainder
          * 2 sub-parts

          • Nucleus: vowel /æ/
          • Coda: consonant /t/
• 3. Morphophonological structure - whole thing/word

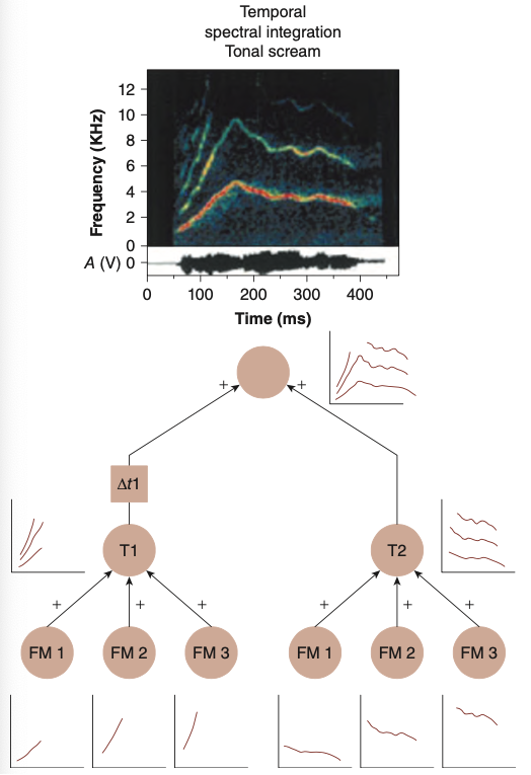

• • Monkey study

    • Examine how monkeys perceive speech/calls or tonal scream
    • hypothetical hierarchical neural network for monkey speech perception

      • 1. Lower order cells: detect specific “frequency modulated (FM) sweeps” at a specific time
           * cells detect FM component in the upward sweep @ time 1 (200 ms) and downward sweep @ time 2 (2^nd 200ms)
           * extract sweeps and send it to mid-lv cells
      • 2. mid-lv cells: (T1 and T2) combine inputs from the lower lv
           * detect harmonic patterns in each time frame
      • 3. High-lv cells: combine inputs from the middle lv
           * detect complex auditory stimuli w/ spectrotemporal features in tonal screams
      • NOTE: the connection from T1 cell to the cell at the highest lv has a delay (Δt1) → This hold up the signal long enough so the inputs from T1 and T2 arrive at the top cell the same time
• feedforward synaptic pathway in the STG
• The one for human language is more complex: has dorsal and ventral streams

Question 5

How/steps Auditory info is transformed b4 reaching the cerebral cortex

• 2 steps
• Spiral ganglion
• Hair cells: near base vs apex
• 3 lv of nuclei in brainstem
• 2 properties this ascending pathway maintains
• 2 paths for info processing
• Descending path: 2 parts
• Descending path fx
  *

Answer 5

Box 5.2: From Cochlea to Cortex

• Auditory info is transformed b4 reaching the cerebral cortex
• 1. sound is coded as electrical signals in the spiral ganglion
     * Spiral ganglion: part of the cochlear in the inner ear
     * The sound waves moves across may sensory receptors/hair cells
     * Hair cells are organized by frequency

     • Near base: low frequency sounds
     • Near apex: high frequency sounds
• 2. signals travel through trochlear nerve to brainstem; then pass thru 3 lv of nuclei
     * Superior olivary nucleus
     * Lateral lemniscus
     * Primary auditory cortex in Heschl’s gyrus (aka transverse superior temporal gyrus)
• EEG studies: this ascending path maintains spectral and temporal properties of sound
• Info processing is bottom-up (ascending path) and top-down (descending path)

  • Top-down/Descending pathway: cog states (ex. selective attention) reacts to reaches spiral ganglion;

    • regulate early stages of auditory perception in top-down way
• Rs: auditory brainstem is neither passive or hardwired; it can be modified

  • Ex. dev musical skills, learn tonal language

Question 6

• define bilateral organization
• Which stages in Dual Stream Model is organized this way?
• Which hemispheres used for speech perception?
• Damage to which region impairs speech perception most?
• Studies

  • 1 Binder et al 2000

    • Showed ppl 5 types of auditory stimuli: 5 stimuli?
    • What does the result show?

      • 3 main results
    • Limitation

      • 2 explanation
    • What do ST areas do?
  • 2 Okada and Hickok 2006 - fMRI study: Bilateral STS areas are sensitive to phonological neighbourhood density

    • phonological neighbourhood
    • Results
  • Lesion studies
  • 3 Hikok et al 2008

    • Showed LH & RH are each capable of speech perception
    • 2 part method

      • Wada procedure
      • Task
    • Results
  • 4 Word deafness study implication
• 2 MP of all studies

  • Role of LH
  • Role of RH

Answer 6

Bilateral Organization = Both Hemispheres Contribute to Speech Perception

• Recall: Early cortical stages of speech perception (aka 1st 2 stages of Dual Stream Model) is organized bilaterally
• LH and RH: activated by speech stimuli, can perceive speech
• Bilateral damage to STG/STS impair speech perception
• Binder et al 2000

  • Showed ppl 5 types of auditory stimuli

    • 1. Unstructured noise
    • 2. FM tones
    • 3. Words (ex. desk, fork, stream)
    • 4. Pronounceable pseudowords (ex. sked, korf, reemst)
    • 5. Reversed words
  • Patterns of activation:

    • Auditory area on dorsal plane of STG responded more to tones > noise
    • Region in mid-lateral STG responded to speech > tones > noise
    • Middle sector of STS responded more to speech > tones
  • This support the hypothesis that early cortical stages of speech perception are organized hierarchically and bilaterally

    • 1. dorsal part of STG: conduct spectrotemporal analyses
    • 2. lateral part of STG and middle part of STS: detect complex feature combinations in human speech
    • 3. These areas are sequentially engaged in the LH
  • Limitation: STS is activated for words, pseudowords, and reversed words
  • 2 explanations

    • 1. Pseudowords used the same regions as real words b/c they share phoneme and syllable features
    • 2. All 3 stimuli (reversed, real, and pseudowords) have equivalent acoustic complexity
• Hickok and Poeppel 2007

  • Many fMRI studies agree that parts of lateral STG and middle STS in LH and RH contribute more to perceptual analysis of speech than non-speech info
• Okada and Hickok 2006

  • Bilateral STS areas are sensitive to phonological neighbourhood density
  • Some words hv many similar sounds words

    • Ex. cat belongs to the neighbourhood including: cab, cad, calf, cash, etc
  • Other words have few associates (ex. spinach, obtuse)
  • Words from high density neighbourhood activate more phonological competitors
  • fMRI results: STS was engaged bilaterally by high density words more extensively
  • IOW: STS represents the phonological competitors that are activated during auditory word recognition
• • Neuropsychology lesion studies

    • Hikok et al 2008

      • Showed both LH and RH are independently capable of speech perception
      • Method:

        • 1. Wada procedure: Inject sodium amobarbitol to temporarily shut down an entire hemisphere (20 patients)
        • 2. Task
             * Listen to a word (ex. bear), then point to matching picture on the sheet
             * Other distractors

             • Phenomic distractor (ex. a pear)
             • Semantic distractor (ex. moose)
             • Unrelated picture (ex. grapes)
      • Results:

        • there were more phenomics based errors in the LH anaesthesia
        • But it is still low (10%)
      • IOW: when LH is offline temp, RH can still perceive speech well
      • This supports dual stream model: early cortical stages of speech perception are bilaterally organized
• Word deafness studies

  • Supports Dual Stream Model
  • Word deafness: neuro disorder where most hearing and non-speech sounds are intact, but speech perception is disrupted
  • It is a continuum of severity
  • Most cases (70%) have symmetric bilateral lesions that affect the middle and posterior parts of STG, but not the HG
  • IOW: need to damage higher-order auditory systems in both hemispheres to cause the disorder
• Overall, studies show LH and RH each play a role in speech perception
• But there is some functional asymmetry

  • L: dominant for integrating signals for rapidly changing phonemes
  • R: dominant to integrate signals for longer syllables

Question 7

The Two Hemispheres Have Partially Different Temporal Windows for Speech Perception

• 2 types of phonological info
• “asymmetric sampling in time” hypothesis

  • 2 parts

    • primary auditory cortex fx
    • higher order auditory fx

      • LH vs RH
• Liebenthal et al 1995 - Compare how ppl discriminate familiar phonemics sounds w/ nonphonemic sounds equal in complexity

  • Phonemic discrimination task stimuli
  • Nonphonemic discrimination task stimuli
  • Overall method
  • Results

    • Categorical perception
    • Phonemic discrimination task vs nonphonemic
    • fMRI result/overall
• Abrams et al 2008 - Used EEG to record LH and RH temporal patterns when children listened passively to sentence in 3 modes of speech

  • 3 modes
  • Speech envelope
  • Results about RH

Answer 7

• Ex. some phonological info occur quickly (i.e. 50 ms)
• Ex. contrast b/w /k/, /g/
• Ex. contrast b/w pest and pets
• Some occur more slowly (200 ms)

  • Ex. Cues for syllabus stress
• “asymmetric sampling in time” hypothesis

  • Proposed by Poeppel
  • 1. Primary auditory cortex in both hemispheres create symmetric representations of auditory signals
  • 2. The higher order auditory cortex in both hemispheres filter them through diff temporal window that produce asymmetric representations in “chunks”
       * LH: more sensitive to auditory variation around 50ms, to detect tiny distinctions
       * RH: more sensitive to longer auditory pattern around 200ms, to extract info at syllables
• Liebenthal et al 1995

  • Compare how ppl discriminate familiar phonemics sounds w/ nonphonemic sounds equal in complexity
  • Phonemic discrimination task stimuli

    • Created 8 stimuli that are CV syllables (#1-8)

      • A continuum of /ba/ to /da/
  • Nonphonemic discrimination task stimuli

    • Alter the sounds in Phonemic discrimination task so the stimuli are not sounds that are naturally produced by human vocal tract
  • Method

    • 1. Ppl were scanned while performing a task; they need to determine if the given sound X is identical to the first or second sound in a prev presented pair (ex. 2&4, 4&6, 6&8)
  • Results

    • There is categorical perception for phonemic continuum but not the nonphonemic continuum

      • Categorical perception: perceive 2 speech sounds that belong to the same category as more similar to each other (ex. 2 instances of /b/) compared to speech sounds from different categories (ex. /b/ vs /d/)
      • But the objective acoustic differences (i.e. formants/peaks of acoustic energy in vocal tract frequency) are the same
    • In particular, in the phonemic continuum

      • discrimination b/w 4&6 is good

        • This is b/c the 2 tokens are located in the sharp boundary b/w /ba/ and /da/ categories
      • The discrimination b/w 2&4 and 6&8 were poor

        • This is b/c the 2&4 are located in the /ba/ category
        • 6&8 are located in the /da/ category
    • In nonphonemic continuum, there is difference in performance; this suggest there is no category boundary detected
    • fMRI results

      • all sounds engaged dorsal STG bilaterally and to equal degrees
      • phonemic stimuli engaged the middle STS in LH more than nonphonemic stimuli
      • no areas were activated more by nonphonemic than phonemic stimuli
      • STS activation associated w/ the contrast b/w phonemic and nonphonemic stimuli was more active on the left
• Conclusion

  • “asymmetric sampling in time” hypothesis states

    • Higher order process: LH: more sensitive to auditory variation around 50ms, to detect tiny distinctions
    • Study results support theory: Discriminating sounds along phonetic /ba/-/da/ continuum activate left STS more than right STS
  • asymmetric sampling in time” hypothesis states

    • bilateral Primary auditory cortexes create symmetric representations of auditory signals
    • Study challenges this: left bias to STS w/ phonemic sounds was bigger than that w/ nonphonemic sounds
    • explanation: phonemic sounds were more familiar; nonphonemic = unfamiliar

      • Maybe the left temporal lobe is also responsible for categorical perception (familiar vs unfamiliar)
• Overall, study shows LH prefer short auditory signals, and process categorically
• Posterior portion of left STS contribute to speech perception by using auditory info and visual info (from lip and tongue)
• Asymmetric sampling in time hypothesis for the RH
• Abrams et al 2008

  • Used electrophysiology to record temporal patterns of LH and RH on children
  • Children listened passively to sentence in 3 modes of speech

    • Ex. the young boy left home
    • 1. Clear: enhanced diction, intelligible
    • 2. Conversational: natural informal manner
    • 3. Compressed: 2x rate
  • Speech envelope: slow temporal variation (i.e. little diff across time) in acoustic energy in speech; this reflects syllable pattern
  • Results:

    • There are 3 electrodes on left temporal lobe; 3 on right
    • 3 on the right are more reliable at tracking the speech envelope in all 3 conditions

      • Also showed larger responses
    • Red lines (3 electrodes on RH) conform to the speech envelope line more than the blue lines (3 electrodes on LH)
    • The ERPs recorded from RH correlates better w/ the speech envelope compared to those from the LH
  • Conclusion:

    • Results suggest the RH is dominant for processing speech on a slow time scale for syllable patterns
    • IOW: supports “asymmetric sampling in time” hypothesis

      • RH: more sensitive to longer auditory pattern around 200ms, to extract info at syllables

Summary

• Early cortical stages of speech perception starts in HG and project into STG and STS
• Auditory processing here is hierarchically organized

  • Lower lv conduct elementary spectrotemporal analysis
  • Higher lv: extract more complex phonological patterns
• Also, it is bilaterally organized

  • 2 hemispheres have diff fx contributions:

    • LH: detect + categorize rapidly changing phonemic features (50ms)
    • RH: deal w/ longer syllabic info (200 ms)
• Beauchamp et al 2010

  • Examine if the left posterior STS create the McGurk effect
  • Used fMRI and TMS
  • Stage 1 – fMRI

    • Measure ppl brain activity in 2 conditions

      • 1. Listen to spoken words and watch faces produce words
      • 2. Only watch faces produce words
    • Analysis results

      • Region in left posterior STS respond to both auditory and visual speech
  • Stage 2: TMS

    • Stimulate the centre of STS, and the control site (dorsal & posterior) in 2 conditions

      • 1. McGurk stimuli w/ male voice and face
      • 2. McGurk stimuli w/ female voice and face
    • Analysis results:

      • TMS delivered to STS reduced the chance of fusing auditory and visual signals of McGurk stimuli
      • TMS delivered to the control site did not alter the perception
      • • Ppl report suggest auditory input dominated visual input (heard /ba/ during McGurk effect)
    • TMS only disrupted McGurk effect when it was delivered to the STS b/w -100 ms (100 ms v4 showing McGurk stimuli) to 100 ms
    • • Conclusion: left posterior STS is responsible for auditory-visual integration during speech perception

Question 8

• Why do most ppl perceive a blend of the syllable /da/ in McGurk effect?
• 2 streams in visual processing
• Double dissociation showing 2 visual streams can be selectively impaired

  • Effects when “what stream” is damaged
  • Effects when “how stream” is damaged
• Double dissociation & speech processing

  • 2 types of impaired abilities
  • transcortical sensory aphasia
  • conduction aphasia
  • What does this suggest about the dual stream model?
• Double dissociation for auditory monitoring & comprehension

  • Auditory comprehension task
  • Auditory monitoring task
  • Miceli et al 1980 - Gave auditory comprehension and discrimination/monitoring tasks to aphasia patients

    • auditory comprehension task: 6 pics
    • Result

Answer 8

Box 5.3: The Neural Substrates of Auditory–Visual Integration During Speech Perception: A Combined fMRI and TMS Study of the McGurk Effect

• McGurk effect: illusion in face-to-face speech perception; brain fuses auditory and visual signals
• Method: Present the audio recording of syllable /ba/ w/ video recording of face/mouth pronouncing /ga/
• Result: most ppl perceive a blend, the syllable /da/
• Explanation: the brain integrate 2 competing sensory signals by adopting an intermediate interpretation

  • Alveolar /da/ is midway b/w labial /ba/ (sound) and velar/ ga/ (visual)

A Double Dissociation Between Comprehension and Repetition: Initial Evidence for Separate Streams of Speech Processing

• Visual processing occurs at occipital lobe, then it splits into 2 channels

  • Channel 1: enters the ventral temporal cortex

    • Aka “what” path; provide info on shape, color, texture to recognize the object
  • Channel 2: runs dorsally, enter superior parietal cortex to the premotor cortex

    • “how” path: responsible for visual-motor transformations, help coordinate bodily interaction w/ objects
    • Ex. reach out and grasp apple
• Evidence
• Study: double dissociation

  • 2 visual streams can be selectively impaired
  • Damage to “what” path disrupt the ability to perceive and identify visually presented objects

    • Ex. Patient DF cannot say if the pencil is oriented vertical or horizontally
    • But she can reach out and grasp it
  • Damage to “how” stream disrupt the ability to act appropriately on visually presented objects; but you can recognize them

    • Ex. patient w/ optic ataxia
    • They aim at the wrong direction to reach and grasp objects
    • But they can recognize the object perfectly
• double dissociation cases in speech processing

  • Ex. focal brain damage can selectively impair comprehension (knowing “what is said/content) or repetition (knowing how it is said/ vocal action)

    • Ex. patient w/ transcortical sensory aphasia: can’t understand meanings in words and sentences; but can perfectly repeat words and sentences
    • Ex. patients w/ conduction aphasia: understand perfectly; terribly at repetition
  • This suggest that after early cortical stages of speech perception, info is further processed in 2 separate streams

    • Route 1: link phonological representations w/ lexical semantic system
    • Route 2: link phonological rep w/ motor articulatory system
  • IOW: Dual Stream Model

double dissociation studies for auditory comprehension tasks and auditory monitoring task

• Auditory comprehension task: word-pic matching
• Auditory monitoring task: discriminate and identify phoneme
• Ex. Miceli et al 1980

  • Gave auditory comprehension and monitoring tasks to 70 aphasia patients

    • Comprehension task: match words/pics

      • 6 pictures:

        • the target
        • semantic related distractors
        • phonologic related distractor
        • 3 unrelated distractors
    • Discrimination/monitoring task: make same-diff judgements on pairs of syllables

      • Set: prin,trin,krin,brin,drin,grin
  • Results: double dissociation

    • Some were perfect at both tasks
    • Some sucked at both tasks
    • Some were good at comprehension task; shitted discrimination task
    • Some were good at discrimination task; shitted at comprehension task
• Summary: Some ppl do well in auditory monitoring tasks, but shit at auditory comprehension task

  • Ex. matches “cat” w/ a “cat” picture ; can’t tell apart “cat” vs “cot”

Question 9

• Ventral stream - aka
• fx
• 2 functional-anatomical components

  • other connection?
  • location
  • LH bias?
• Lexical interface

  • fx
  • 2 views for mapping process
  • Lemma
• Evidence: lexical interface in pMTG and pITG w/ LH bias

  • Patients w/ Wernicke aphasia
  • Patients w/ transcortical sensory aphasia
  • Boatman et al 2000 - Examine how electrical interferences at diff sites influenced task performance

    • 2 main results
• 2 modifications to model

  • Dronkers et al 2004 - Showed lexical interface depends largely on left pMTG

    • What is CYCLE-R?
    • Results - role of pMTG
  • patient w/ corpus callosum severed - they can still understand some words

    • What does this suggest?
• The combinatorial Network

  • What is it?
  • 2 things it implements
• Evidence

  • Rogalsky and Hickok 2009 - examine if the a portion of the left lateral ATL responses to compositional semantics; while the other responds to syntactic structure

    • Methods
    • 2 tasks
    • Key finding
    • 2 suggestions
• Summary

  • Ventral path 2 parts
  • Lexical

    • fx
    • location
  • Combinatorial

    • fx
    • location

Answer 9

The Ventral “What” Stream: From Sound to Meaning

• The “what” stream fx

  • map sound to meaning
  • form integrated meanings of complex speech (ex. phrase, sentence)
• 2 functional-anatomical components

  • Lexical interface:

    • Connected to phonological network
    • Location: posterior MTG, ITS
    • LH bias
  • Combinational network

    • Location: anterior MTG, ITS
    • LH dominance
• The Lexical Interface
• map phonological structures (from phonological network) and semantic structure

  • IOW: does not store meanings of words
• mapping process - 2 views

  • 1. One-stage view
       * word meaning (ex. concept of cat) projects to phonological representation (ex. /kæt/)
       * then to a more specific phonological representation that spells things out (ex. /k/, /æ/, /t/)
  • 2. Two-stage view
       * Additional lv: lemma
       * Lemma: indicates grammar category (ex. cat is a type of noun); bridge b/w semantics and phonology,
• Evidence: lexical interface in pMTG and pITG w/ LH bias

  • Study: Patients w/ Wernicke aphasia w/ the worst comprehension deficits

    • They tend to have lesions on the left pMTG
  • Study: Patients w/ transcortical sensory aphasia

    • Have damaged pMTG and pITG
    • Their understanding of spoken words, phrases, and sentences is severely impaired
  • MP: These impairments affect the neural mechanisms that map sound to meaning
  • Boatman et al 2000

    • 6 patients
    • Dr implant electrode array in left lateral cortex
    • Examine how direct electrical interferences at diff sites influenced performance on 7 tasks
    • Method

      • 1. Send electrical current b/w 2 adjacent electrodes, for 5 s
           * Tested 81 electrode pairs per patient
    • Results

      • Stimulating 29/81 electrode pairs triggered ST transcortical sensory aphasia

        • Most of the electrodes were in pMTG
        • Also interfere w/ auditory comprehension (can hear, don’t understand)
        • Interfere w/ oral reading

          • Ex. phonemic paraphasia (say orly, not nearly)
          • Ex. semantic substitutions (say stick, not pencil)
      • Stimulating 19/29 critical sites -> Impair oral object naming
      • Stimulating 10/29 critical sites -> no effect

        • IOW: semantic knowledge is not affected
  • This showed disruption can happen b/w LH phonology and lexical semantic processing in patients
  • Supports the Dual Stream model: The ventral stream has lexical interface, relays b/w sound and meaning during speech comprehension
  • • Dronkers et al 2004

      • Showed lexical interface depends largely on left pMTG
      • 65 chronic stroke patients w/ LH lesion
      • Method: Did Curtiss-Yamada Comprehensive Language Evaluation -receptive (CYCLE-R)

        • 11 subtests on sentience-pic matching
        • Simple to complex sentences
        • Simple: ex the clown has a balloon
        • Complex: ex the girl is kissing the boy that the clown is hugging
      • Analysed performance and lesions site w/ voxel-based lesion-symptom mapping
      • Results: the worse deficits were strongly associated w/ left pMTG damage

        • Patients w/ damage to this area did normal in tasks using the simplest sentence type, but shitted on the others
        • They failed 3 comprehension tasks in Western Aphasia battery
      • Conclusion: left pMTG plays a key role in understanding words
      • But the data can’t tell if pMTG contributes to conceptual-semantic or phonological aspects, or linking b/w form and concept
      • Boatmann et al 2000 (see abv) showed pMTG links b/w form and concept
  • Study: patient w/ corpus callosum severed – they can understand some words

    • Suggest there may be bilateral capability in lexical and semantic access
    • • The combinatorial Network:
  • the lexical interface maps sound to meaning → then sends it to combinatorial network @ the lateral ATL (anterior temporal lobe), LH bias

    • draw on semantic and syntactic info to construct the integrated meanings of phrases and sentences
• Evidence

  • fMRI, PET study: left lateral ATL respond more to intelligible, correct sentences than unintelligible multi-words
• Rogalsky and Hickok 2009

  • some studies think a part of left lateral ATL is more sensitive to compositional semantics; other part = syntactic structure → examine this
  • fMRI study
  • 1. Identified region of interest (ROI) in left ATL
       * Ppl passively listen to nouns, record which voxels were active
  • 2. Ppl did 2 tasks
       * Task 1. Ppl listened to sentences, then pressed a button when they detect a semantic anomaly

       • Ex. the bb spilled some carpet on the milk
         * Task 2: ppl listened to sentences and pressed a button when they detect a syntactic anomaly
       • Ex. the plumber w/ the glasses were installing the sink
  • 3. Rs discarded anomalous sentences; only looked at the normal sentences; this ensures the ROI activity differences are not due to diff in sentences
  • Finding: ATL ROI was equally sensitive to semantic and syntactic task

    • This suggests the left lateral ATL implements combinatorial network
    • Suggests the semantic and syntactic features are processed in an interactive, not segregated manner

Summary

• Ventral path in dual stream model: speech comprehension

  • 2 parts

    • 1. Lexical interface: maps sound to meaning
         * Location: pMTG and pITG bilaterally, LH bias
    • 2. Combinatorial network: use syntactic and semantic info, to integrate the phrases/sentence meaning
         * Location: ATL, LH bias
• 2 modifications to model
• 1. ATL maybe a LT storage for words & connects features to the main content
     * Ex. connect the visual image and function to the word “spoon”
     * This info is then sent to the combinatorial network in ATL
• 2. The ventral stream operates w/ the dorsal stream to work out morphology and syntax

Question 10

• Dorsal pathway aka?
• 4 fx
• 2 components

  • connections?
  • Location
• The Sensorimotor Interface
• left Planum temporale (PT) aka?
• fx
• Connectiions
• When is Spt active?
• Evidence

  • Hicktok et al 2003 - ppl did the “speech” condition task

    • Speech condition task
    • Results

      • Spt area
      • Anterior STG

        • what does this suggest
  • Part 2

    • Music condition task
    • Spt and STG results
    • What does this suggest?
  • Pa and Hickok 2008 - fMRI study showed that Spt only regulates vocal tract

    • Specific population?
    • Music condition task
    • Play condition task
    • Main finding
  • Aphasia studies

    • What causes conduction aphasia?
    • Conduction aphasia
    • How does conduction aphasia affect dual stream model?
  • Buchsbaum et al 2011 - overlaid the lesions sites, added more data from patients w/ conduction aphasia

    • Main finding
  • logopenic progressive aphasia
• Articulatory network

  • 4 locations
  • 2 fx
  • Auditory-verbal STM
  • Digit-span task

    • Method
    • When STM does it engages?
  • auditory-verbal STM process - 2 steps
  • frontal articulatory network
  • fMRI studies: when is frontal articulatory network activated
  • 4 fx of motor system
  • Prev “double dissociation b/w comprehension and monitoring”

    • 2 main results
    • What type of aphasia these patients hv?
    • What type of lesions these patients hv?
    • 2 main reasons that explain results
  • TMS study: TMS lips and tongue in left PMC to see if this enhance certain fx

    • 2 Hypothesis
    • Key result
    • What does this suggest?
  • Pulvermuller et al 2006 - measure motor brain area activity in when ppl listen to passive speech

    • Results
  • 2 problems from all these studies

    • Hickok et al defence to 2nd problem
• Summary

  • Dorsal route main fx
  • 3 main steps
  • 3 main fx of articulatory network

Answer 10

• Dorsal pathway = “how” system
• Dorsal stream fx

  • It maps sounds onto action (how it is articulated w/ muscles)
  • 1. help learn language by controlling muscles to imitate speech patterns
  • 2. foundation of phonological loop (aka auditory-verbal STM)
       * Memory is kept alive by covert repetition
  • 3. Helps speech perception
• 2 main fx-anatomical components

  • 1. Sensorimotor interface:
       * Connects to phonological network and spectrotemporal analysis
       * parietal-temporal Spt; LH bias
  • 2. Articulatory network
       * Connects to sensorimotor interface
       * Located in pIFG, anterior insula; LH bias
• The Sensorimotor Interface
• Located in left Planum temporale (PT), aka area Spt (Area Spt: sylvian parietal-temporal)

  • a sensorimotor integration system that uses auditory info to help guide movement of vocal tract
  • Spt connects the word’s “sound image” in middle STS (i.e. phonological network) w/ word’s “motor image” in posterior FL (i.e. articulatory network)
• fMRI Study: Spt is active in speech perception, speech production (covert & overt)
• Hicktok et al 2003

  • Method: “speech” condition task

    • 1. Ppl heard 3-s meaningless sentence
         * Real nouns and verbs were replaced w/ pseudowords
    • 2. Ppl covertly rehearsed the sentences for 15 s
    • 3. Ppl heard another 3s meaningless sentence
    • 4. Ppl rested for 15s
  • Results

    • Spt area was activated during 2 auditory stimulation phases, and covert rehearsal phase
    • It dropped to baseline during rest phase
    • Anterior part of dorsal STG were activated in 2 auditory stimulant phases, but not in rehearsal phase
    • IOW: the cortex help speech perception, but are not part of sensorimotor interface
• Part 2 of study

  • Examine if Spt area contributes to sensorimotor coordination for other vocal sounds/actions
  • Method w/ “music condition”

    • 1. Ppl heard a 3 s unfamiliar melody
    • 2. Ppl hummed melody for 15s
    • 3. Ppl heard another 3s unfamiliar melody
    • 4. Ppl rested for 15s
  • Results: similar to speech condition

    • Spt and anterior STG activated
  • This suggest that Spt is a sensorimotor integration system that uses phonological material and “doable” sounds
• Pa and Hickok 2008

  • fMRI study showed that Spt only regulates vocal tract
  • Method – skilled pianists do music condition and play condition tasks
  • Music condition: similar to music condition procedure above

    • 1. Ppl heard a 3 s unfamiliar melody
    • *2. Ppl hummed melody for 15s
    • 3. Ppl heard another 3s unfamiliar melody
    • 4. Ppl rested for 15s
  • play condition

    • 1. Ppl heard a 3 s unfamiliar melody
    • *2. Ppl imagined playing the melody on a keyboard
    • 3. Ppl heard another 3s unfamiliar melody
    • 4. Ppl rested for 15s
  • Results

    • Music condition: more activation in area Spt in auditory stimuli and covert rehearsal phases, but not in rest phase
    • Play condition: more activation in anterior intraparietal sulcus in auditory stimulation and cover rehearsal phase, but not in rest phase

      • This aligns w/ other findings

        • Anterior intraparietal sulcus is a sensorimotor interface for perceptual guidance actions (ex. play piano)
    • MP: Area Spt maps sounds and actions for vocal tract only
• Aphasia studies

  • Damage to left supramarginal gyrus and area Spt leads to conduction aphasia

    • Conduction aphasia: language comprehension intact; language production is impaired

      • Specifically Distorted by phonemic paraphasia (ex, say tephelon, not telephone), repetition is impaired
  • For Dual Stream model, this aphasia damages sensorimotor interface

    • Comprehension is preserved as there is no lesion on ventral stream
    • There’s phonemic paraphasia (esp for long, complex, low f words)
    • This is b/c the relay station is damaged, and the auditory info is stuck, can’t help guide movement of vocal tract
• Buchsbaum et al 2011

  • Part 1: rs overlaid lesions sites of 15 patients w/ conduction aphasia

    • Results: common damaged region in 85% of cases is in the left temporoparietal area, incl area Spt
  • Part 2: Combined imagine data from 105 healthy ppl from studies similar to Hickok (see abv)

    • Combined analysis showed 50% of ppl showed sig activation in area Spt during auditory stimulation (encoding) and covert rehearsal phases of the tasks
    • There’s only 50% b/c there are indiv diff in neuroanatomy in PT and area Spt
  • Part 3: rs superimposed lesion data and fMRI data

    • There’s 85% lesion overlap and sig activation during encoding and rehearsal task at the area Spt
• These findings support the hypothesis conduction aphasia is an impairment to the sensorimotor interface in dual stream model
• NOTE: logopenic progressive aphasia is associated w/ gradual atrophy in area Spt
• The Articulatory Network
• Location: left pIFG (Broca’s area), premotor and PMC to control vocal apparatus and anterior insula
• fx: auditory-verbal STM, and some speech perception

  • Auditory-verbal STM: aka phonological loop, keep phonological info in mind for a short time, used in covert rehearsal
• Digit-span task: lab test that determine the longest string of random digits a person can repeat correctly

  • Most ppl: 7 items (ex. telephone #: 7 digits)
  • Used when you need to remember driving directions

    • This uses auditory-verbal STM when you rehearse it covertly
• Neural substrates of auditory-verbal STM

  • 1. speech we perceive activate phonological rep/ auditory verbal STM in STS bilaterally
  • 2. These phonological reps are maintained in the dorsal stream by frontal articulatory network
       * frontal articulatory network: controls and refreshes the phonological rep via the sensorimotor interface (in Spt area)
• fMRI studies: frontal articulatory network were activated during covert rehearsal
• Evidence: motor system help perceive, recog, program and execute action
• Studies: prev “double dissociation b/w comprehension and monitoring”

  • Some brain damaged patients do well on auditory comprehensions tasks (ex. word-pic matching: match the word “cat” w/ cat pic)
  • But they suck at auditory monitoring tasks

    • (ex. phoneme discrimination and identification – can’t determine if “cat” and “cot” are diff words; OR if “cat” has the vowel /æ/)
  • They tend to hv Broca’s aphasia or conduction aphasia; lesions are in left frontal of left frontoparietal
  • IOW: these findings show at that monitoring task rely on dorsal stream

    • i.e. need to pay attention to phonological structure of utterances
• 2 reasons

  • 1. They need auditory-verbal STM to keep relevant phonological rep online to make discrimination/identification (monitoring task)
  • 2. These tasks involve segmented syllables in the phonemes; this needs the articulatory network
• TMS studies show that auditory monitoring tasks use articulatory network

  • TMS targeted Broca’s area, primary motor cortex/PMC, premotor cortex
• D’Ausilio et al 2009

  • Method:
  • 1. Identify the areas for controlling the lips and tongue in left PMC in ppl
       * NOTE: lip area is superior to tongue area as in the homunculus
       * They located it using the coordinates of the peak activations in fMRI
  • 2. Ppl did task
       * On each trial, present ¼ speech sounds

       • 2 produced w/ lips (/bæ/ or /pæ/)
       • 2 produced w/ tongue (/dæ/ or /tæ/)
         * Ppl were asked to identify each sounds by pressing ¼ buttons
         * To avoid ceiling effects (not hard enough), sounds were embedded in 500 ms of white noise -> correct response for 75%
         * For 60/80 trials, 2 TMS pulses were delivered to lip or tongue area
       • TMS 1 at 100 ms after noise onset
       • TMS 2 at 150 ms after noise onset (or 50 ms b4 consonant is presented)
  • Assumption: pulses enhance activity in stimulated areas
  • so, rs predict stimulating the lip area will improve telling apart the labial sounds (/bæ/ and /pæ/)
  • Stimulating tongue area improve telling apart dental sounds /dæ/ and /tæ/
  • Results support predictions

    • In the lip area,

      • trials w/ TMS led to faster RT (lower than 100) to recognize lip-produced sounds compared to no TMS
      • Had slower RT (100+) to recognise tongue=produced sounds
    • In tongue area: opposite

      • Trials w/ TMS -> faster RT to recognize tongue-produced sounds
      • Slower RT to recog lip-produced sounds
  • Stimulation of motor area (tongue or lip) help identify speech sounds produced by the respective area; inhibits identification produced from other area
  • This supports articulatory network help us pay attention to phonological makeup of perceived speech
• Articulatory network is also engaged when ppl listen passively to utterances
• Pulvermuller et al 2006

  • Measure motor activity in ppl’s brain while doing 3 tasks
  • 1. Lip and tongue movements
  • 2. Silent production of lip-related (/pa/) and tongue-related (/ta/) sounds
  • 3. Passive perception of lip-related (/pa/) and tongue-related (/ta/) sounds
  • Findings:

    • Some motor areas engaged during in all 3 tasks
  • MP: Articulatory network is also engaged when ppl listen passively to utterances
• Problem:
• 1. studies above did not show motor response to speech are sig diff from those to other sounds
     * Ex. Watkin et al 2003

     • Report motor activations triggered by speech sounds are not sig greater than those triggered by nonverbal sounds (ex. car engine, braking glass)
• 2. Articulatory network may modulate passive perception of speech, but may not help comprehension
     * Hickok et al defence

     • There’s evidence
     • 1. Large left frontal lesions reduce speech production
          * But there is only 8% error rate to discriminate phonemic pairs (ex mathc “bear” to pic)
     • 2. Bb has speech perception b/w speech production

Summary

• Dorsal route: map speech perception on speech production
• 1. Auditory rep in dorsal STG and mid STS (spectrotemp analysis & phonological network) are transmitted to area Spt (sensorimotor interface)
• 2. Area Spt transform input; then send signals to articulatory network at left posterior FL
• 3. Articulatory network
     * Helps acquire auditory based speech-motor patterns
     * Helps auditory-verbal STM
     * Help perceptual processing in speech

Question 11

• Scott’s model of turn taking

Answer 11

Box 5.4: Might Articulatory Activation During Speech Perception Facilitate Turn-Taking?

• Scott et al 2009
• Scott’s model of turn taking/ Hypothesis: dorsal pathway may help speech perception; it tracks rhythm and rate of talkers, which helps smooth turn-taking
• This H is consistent w/ findings

  • Ex. during convos, ppl involuntarily align their conceptual and syntactic structure, breathing and pronunciation
  • Turn-taking happen rapidly (1/2 s)

Question 12

Lec

• MRI - fx

  • pro
  • con
  • How do we combine MRI + Neuropsychology methods?
• fMRI - fx

  • pro
  • con
  • Why is temp resolution shit? - 2 reasons
  • How do we combine fMRI + cross-species comparisons?

    • Dogs: LH fx, RH fx
    • How does praise their trigger reward system?
    • What is the cross-species similarity b/w dog and humans?
    • What does this suggest about the evolution for language acquisition?

Answer 12

MRI and fMRI

• Magnetic Resonance Imaging (MRI): images of brain structure (static pic)

  • Highly popular technique - Increasing # of articles using MRI
  • Pros: Excellent Spatial Resolution
  • Cons: Show structure, not how it functions
  • We can combine MRI + Neuropsychology methods

    • Back then, we look at patients w/ Broca/Wernicke’s aphasia post mortem
    • MRI allows as to see the damage in vivo
• functional Magnetic Resonance Imaging (fMRI): try to correlate images to neural activity (e.g., increased blood flow to a brain region responsible for a language ability)

  • Advantages: Excellent Spatial Resolution
  • Disadvantages: Poor temporal resolution, costly
  • Why is temp resolution shit?

    • 1 We are not directly measuring neural activity; we are only measuring the correlate (i.e. blood flow)
    • 2 When a brain area is processing smth intensely, neuron fires which requires energy and resources; after that, you need to replenish lost resources

      • It takes time to fire, send signal for more blood flow and oxygen in the brain regions → IOW: signal lags
  • We can combine fMRI and cross-species comparisons

    • Similar to humans, dogs use LH to process speech and RH to process intonation
    • Praise trigger reward system if the word and intonation match
    • There are cross-species similarities for language abilities (i.e. LH bias)

      • This suggest language abilities existed some time as it exists in species that are very difference from us

Question 13

• Lec
• 2 evo approaches
• How does studying genetically modified “dyslexic” mice help us understand language?
• PET - 2 step process

Answer 13

Evolutionary Approaches / Cross-species Comparisons

• 1 evolutionary trees (ex. dogs and humans) show how different language-related abilities develop.
• 2 we can use invasive investigations on animal models that are not typically examined in humans
• (e.g., Holly Fitch @ UConn - genetically modified “dyslexic” mice; see).

  • There’s a gene that contribute to dyslexia in humans; GM mice to have dyslexia
  • NOTE: mice don’t read, but they have visual and memory abilities that align w/ some aspects of dyslexia
  • Rs examine how this gene enable or disable certain cog fx, and understand how dyslexics suffer from language repairments, and find ways to remediate it

fMRI’s earlier cousin: PET

• PET: Positron Emission Tomography
• Similar principles,
• 1. inject with radioactive tracer; Specifically, radioactive tracer binds to oxygen and releases a positron, the circle coil detector detects the release
• 2. The detector shows which brain location accumulated the most amount of this tracer; This is the proxy for neural activity
     *

Question 14

• Lec
• MEG
• 3 pros
• EEG issue
• MEG

  • how does it have good spatial and temp resolution
• Study - Examine how monolingual and bilingual bb process spoken language stimuli

  • Methods 4 steps
  • MEG vs fMRI
  • 3 main results
• 2 methods best in spatial and temporal resolution

  • Major difference
• 3 main cons of MEG

Answer 14

MEG/ Magnetoencephalography

• 1,2 Combines the strengths of both MEG and EEG — good temporal and spatial resolution
• 3 It’s one of the best technique, b/c other methods that have good temporal and spatial resolution are invasive
• MEG vs EEG

  • EEG detects electrical activity on scalp

    • Cons: bones, brain tissue, and skin conducts electricity; so it is difficult to trace where the signal came from
  • MEG monitors magnetic activity, which radiates from the source

    • Magnetic activity is not affected by the bones, brain tissue, skin like EEG
    • Rs can create a math model to find out the source of signal

      • IOW: good spatial resolution
    • When neurons fire, there’s electrical activity (i.e. EM source). You can detect magnetic activity instantaneously

      • IOW: good temporal resolution
• Study: bilingualism in babies using MEG

  • Examine how monolingual and bilingual bb process spoken language stimuli
  • Method
  • 1. Bring monolingual bb (Eng only) and bilingual bb (Eng and Spanish) to lab
  • 2. Digitize the bb’s skull shape, so they can determine the location of the brain matter, which allows them to locate the brain activity
  • 3. Bb in MEG room
       * MEG: Cooled w/ liquid He, but super quiet
       * fMRI: Cooled w/ liquid He, but super noisy
  • 4. Listened to /da/ and /ta/ sounds
       * Some were Eng sounds, some Spanish, some common to both languages
  • Results 1:

    • Monolingual: specialized to process English only, not Spanish
    • Bilingual: specialized to process both Eng and Spanish
    • This suggests, by 11 mo, bb’s brains are specialized to process whatever language is present
  • Result 2: Compared to monolingual bb, bilingual showed more activity in prefrontal and orbitofrontal cortex

    • These areas are associated w/ EF, and our active when bilingual adults are speaking back and forth in 2 languages
    • These areas are also active when bilingual bb are listening to a stream of sounds w/ Eng and Spanish sounds
    • When bilingual bb are born, they practice switching b/w 2 languages
    • This may be related to increased brain activity in areas for EF
  • IOW: by 11 mo (1 yr), bb have sophisticated representation of their own language

    • Monolingual bb tune out to non-English features
    • Bilingual bb are sensitive to features common to both languages; engage PFC more often

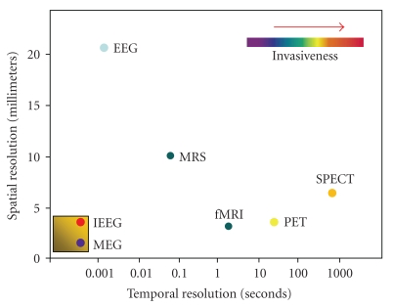

Overall summary of methods and their temp + spatial resolution

• EEG: poor spatial resolution, good temporal resolution
• fMRI: good spatial, shit temporal
• Best in temp and spatial

  • IEEG: intercranial EEG

    • Remove scalp and skull, stab electrodes in it
    • You know where you are working in the brain
  • MEG: non-invasive
• • Why not use MEG?

    • 1. Cost
    • 2. Very sensitive equipment; need shields
    • 3. Can’t pin point deep brain structures (ex. thalamus) but ok for cortical areas

Question 15

• Lec
• process of direction cortical stimulation - 2 main steps for epileptic patients
  *

Answer 15

Direct Cortical Stimulation

• Feed electrical activity to the brain
• Relatively rare
• 1. open scalp and skull
• 2. Stimulate brain to locate where language is represented and source of epileptic seizures
     * We want to avoid operating on the brain area for language (and other vital areas)
     * Ex. For some epileptic patients, we need to remove some brain tissue in deep brain structure

     • To get to the deep brain, we will damage other tissue in the way
     • We want to avoid language areas, as language is key in our life
     • This method helps locate where language areas is, and help us devise an alternative path to remove the affected brain region as well as bypassing language area,

Question 16

• Lec
• Extracranial stimulation techniques fx
• 2 methods
• TMS

  • 2 main steps
  • Major pro

    • method 2 steps
  • Other methods - correlational

    • 2 steps
  • Study: TMS to locate which brain regions is responsible for semantic meaning vs phonological processing

    • 3 main tasks
    • 3 main results
• tCS - what is done

  • tCS vs TMS
  • Study method: tCS and ambiguous words

Answer 16

Extracranial Stimulation techniques

• Direct cortical stimulation is invasive
• Extracranial stimulation techniques

  • Creating “experimental/simulation” abnormalities in brain function

    • Transcranial Magnetic Stimulation (TMS)
    • Transcranial Current Stimulation (tCS)
• Ex. simulated stroke
• May enhance fx of some brain regions

  • Help brain damage patients w/ certain fx

TMS

• 1 Put magnetic coil on skull
• 2 Run current through the coil, this creates a magnetic field that enters the skull and brain tissue
• 3 This alters electrical properties of neurons (ex. make them fire, stop them fire, fire randomly)
• Ex. TMS on motor cortex -> hand move
• Ex. TMS to impair math ability, speaking
• TMS allow us to do causal manipulation

  • 1. Keep stimuli constant (ex. sing London bridge it falling down)
  • 2. manipulate neural activity and affect performance
• Other methods are correlation or indirect measurement

  • 1. Hv diff stimuli feeding the system (ex. monolinguals listen to Eng vs Spanish)
  • 2. This Enhance and reduce neural activity
• Study:

  • Show word “gift”, determine is “present” has the same meaning

    • TMS to rostral area: more impairment
    • TMS to caudal area: no impairment
    • IOW: rostral site is more involved in processing semantic meaning
    • • Show word “key”, decide if “quay” is the same sound
    • TMS to rostral: no impairment
    • TMS to caudal: more impairment
    • IOW: reverse effect
    • This suggest caudal area is more involved in phonological processing
    • • Control task: see a non-word, determine if the next non-word is the same as the previous one
    • TMS to rostral and caudal: no impairment

tCS

• Use electrical current to stimulate brain, not magnetic signals

  • TMS: apply how amount of EM energy in brain for a short period (ex. few sec)
  • tCS: Apply lower-level currents for longer periods (ex. 1 hr/ several days a wk)
• tCS does not inject enough current to cause neurons to fire

  • but biases their activity so that they are more or less likely to fire.
• !!! Disclaimer !!! Lots of DIY tCS projects in the world at the moment, in part because it is simple and inexpensive.
• Prof’s study

  • Apply direct current stimulation (tDCS) to left FL, and examine if the stimulation enhances or inhibit processing of ambiguous words (ex. bank: money bank vs river bank) to unambiguous words (ex. chalk)

Question 17

• Lec
• what is connectionist modelling
• 3 steps
• McClelland & Rumelhart, 1981

  • 3 lvs in the model
  • 2 step process
  • 2 purposes

Answer 17

Connectionist Modelling

• Build computer simulation of how the brain works, how neurons fire and are connected

  • 3 steps: You wire up groups of neuron, allow activity flow through, then see what b it causes

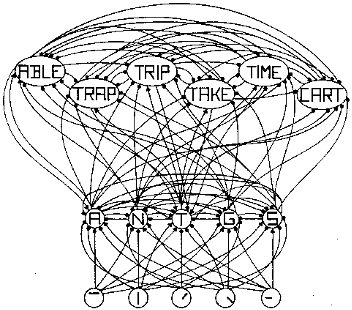

• McClelland & Rumelhart, 1981

  • Created model w/ 3 lv

    • Low lv regions: line detectors
    • Mid lv regions: info from line detectors map onto letter detectors
    • High lv regions: info from letter detectors map onto whole word detectors
  • Allow neurons in model to send activity

    • 1 “-“ activates A, T; not N
    • 2 “A,T” activates “trap, take, and cart”
  • IOW: we can examine in hypothetical terms how certain knowledge representations (ex. A,S) is activated when we feed particular stimuli

    • Help us understand existing b patterns
    • Generate predictions to guide future rs

Question 18

• Lec
• developmental approach

  • 2 things we can see
  • How to tell apart if the change is caused by the stimuli vs dev changes?
• What is the best technique - trick qs

Answer 18

Developmental Approaches

• Studying the brain at different type points in cross-sectional and/or longitudinal studies
• Ex. We can see how brain fx changes when it develops
• Ex. see how brain change when it becomes an expert at processing language

  • IOW: being exposed to language constantly can change how your brain fx
• We need to tell apart if the change is cause by stimuli and developmental changes
• This can be combined with recording techniques to reveal how the brain subserves language

There is no silver bullet

• Every technique has its unique strengths and weaknesses.
• The best investigations combine (either between or within studies) a range of techniques to leverage the strengths that different techniques have to offer.

Question 19

• Lec
• Formisano et al 2008 - bilateral ST regions help speech perception; we can determine which 3 vowels ppl are hearing AND which 3 speakers is talking by looking at neural activity patterns in ST regions

  • Methods

    • Step 1?
    • Step 2 - 3 types multivariate analysis used

      • key result 1
      • neural fingerprint - 4 main results

Answer 19

Speech perception

• Formisano et al 2008

  • Study how superior temporal regions in both hemispheres help speech perception
  • Showed we can determine which 3 vowels ppl are hearing AND which 3 speakers is talking by looking at neural activity patterns in superior temporal regions
  • Methods
  • 1. Ppl were scanned when listening to 3 vowels (/u/, /i/, /a/) that were spoken by 3 speakers (sp1, sp2, sp3)
       * Sp1 = F
       * Sp2, 3 = male
  • 2. Rs did multivariate analysis
       * I. Discrimination analysis: trained algo to differentiate b/w speakers or vowels

       • Most active brain regions: (bilateral) lateral STG and middle STS; RH bias
         * II. Generalization analysis - also can generalize training to new info
         * III. Neural fingerprint analysis (circle graph)
       • 1 There are differences among the same vowel
       • 2 There are diff b/w the vowels
       • 3 There are ambiguities b/w diff speakers speaking diff vowels

         • Ex. sp3 vowel /i/ looks similar to sp2 vowel /a/
         • But humans can tell these ambiguities apart
         • We can understand diff speakers w/ diff vocal tracts, who produce diff vocal sounds for the same abstract vowel

           • 4 The activation pattern shapes in the 3 circles are similar → Diff speech sounds activate partially overlapping and partially distinct neural activity

Question 20

• Lec
• L, R categorical perception
• McCandliss et al., 2002 - train Japanese speakers to learn r/l categorical perception

  • Method
  • Results
  • Panel examination

    • English L vs R pattern
    • Japanese L/R hybrid pattern
    • What does this suggest
  • Part 2 study - Solution

    • Methods - 2 steps
    • Results

Answer 20

Background on Cross-linguistic / Second language Speech Perception

• In English, we have “categorical” perception between “R” and “L” sounds.

  • That is, there is a steep transition between both categories.
  • Method: create “L” and “R” continuum

    • We get confident it is “L” or confident it is “R”

      • “L”: straight line on bottom left
      • “R”: Straight line on top right
      • IOW: no in b/w
      • This is categorical perception

A different story in other languages

• Japanese has a sound that sits between these two speech categories; no “L” or “R”
• After extensive training, many late-acquisition Japanese speakers have trouble learning to perceive English R/L.
• McCandliss et al., 2002
• Method

  • Gave pre-test as baseline
  • Gave training
  • Test them again
• Results: training Japanese to hear “L” vs “R” is not helpful; they still perceive them as the same

What does this mean representationally?

• McClleland et al., 2002

  • Here, each panel correspond to a diff sound
  • Ex. Left panel = L; Center panel = R; Right panel = hybrid L and R
  • L and R panels are distinct, but overlap a bit
  • Hybrid L/R sound in Japanese: difficult to tell apart L and R as this sound cluster L and R into one sound
  • • IOW: If you are proficient in Japanese, you have learned to intentionally COLLAPSE two English categories into one Japanese sound category.
  • Continued exposure to standard R and L sounds are perceived as a single sound.
• Potential Solution

  • Train from more extreme cases where percept is not collapsed into native Japanese sound, providing feedback on what is correct.
  • In panel D: there is extreme R and extreme L
  • These stimuli are very different from the cluster R/L
  • Methods

    • 1 So, authors trained ppl on extreme stimuli
    • 2 Gave ppl feedback on if they classified them correctly
  • Results: there is a difference b/w pre and post test

    • After training from extreme example and received feedback, ppl show more categorical perception

Question 21

• Lec
• better training method to distinguish l/r

  • prev - 2 types training
  • new training

    • 2 steps
• Study: adaptive training

  • Method
  • Results

    • subject 41 vs 40
• Study: Transfer knowledge ability in adaptive vs fixed training

  • Methods: 3 steps
  • 2 major results

Answer 21

Gradually make finer discriminations based on performance

• Can we do even better?

  • Prev:

    • 1. Fixed training (just show L and R)
    • 2. Fixed training w/ extreme examples (show extreme L and R)
  • Now: Adaptive training

    • 1. Show ppl the extreme stimuli
    • 2. Then incrementally provide stimuli that are more typical in English “L” to train them
    • • Study results
  • Y-axis: Stimulus separation = how far apart are the L and R sounds
  • X-axis: training trial # = how many trials ppl did
  • Goal: start at the top left (where stimuli are very distinct), then gradually make the stimuli less distinct based on the indiv’s performance

    • Ex. Subject 41

      • Learn really fast
      • By the end of all trials, he can tell apart stimuli that are really similar
    • Ex. Subject 40

      • Show some improvement
      • Didn’t show the same lv of proficiency subject 41 had
      • Compared to trial 1 w/ very diff stimuli, he can tell apart stimuli that are reasonably similar in the last trial
  • • Study - train transfer
  • 1 Some ppl in fixed training condition; some ppl in adaptive training condition
  • 2. (Train) Trained ppl to tell apart “load and road”
  • 3. (Transfer) Trained ppl to transfer this skill and see if they can tell apart “lock and rock”
  • Ppl in the adaptive training can tell “load and road” apart better than those in the fixed trained condition

    • The black sigmoidal curve is steeper for adaptive training cont
  • Ppl from the adaptive training can transfer their skill and tell “lock and rock” apart more often (more categorical/flatter line on bottom left)
    *

Question 22

Lec

• Sung yoo study: aliens

  • Game premise
  • How does the game help
  • Hebbian learning
  • How is adaptive training used here?
• Methods

  • 2 conditions
• results
• 3 main implications

Answer 22

Alien VG Background

• Game premise

  • Aliens each produce either an R or an L. You need capture or laser an Alien based on its color or sound.

    • Ex. Purple alien produced R -> capture
    • Ex. White alien produces L -> laser
• Purpose:

  • Study provided distinct sound stimuli (R and L), and distinct visual stimuli (white and purple) to help ppl tease things apart (i.e. Hebbian learning)
  • Hebbian Learning: help link the sounds to different responses
• As you gain proficiency, you level up. This is adaptive training (e.g., you hear Aliens before you see them, or Aliens produce more similar sounds).

  • IOW: If you can tell the sounds apart, you know you should capture or laser ahead of time
• This is a fun and non-explicit experiment engage participants

Methods & Results

• Method:

  • Condition A: Ppl play the game 2.5 h, for 5 days
  • Condition B: Told ppl what the game is about, and ppl have to listen to stimuli and categorize it (2-4 weeks)
• Results: using the Alien VG (condition A) help you learn faster than the explicit learning task (condition B)

Implications

• We are not naïve, optimal encoders of the environment.

  • IOW: we don’t differentiate all nuances incoming stimulus
  • Rather, we encode the categories the stimuli belong to
• Perceptual system trades off precision at fine discriminations to enhance perception of critical categories (usually, but not always, beneficial)

  • IOW: we don’t need to know the difference b/w 2 ppl saying “r”
  • We need to know both ppl are trying to say r
• Brute force training is not effective - Proper practice makes it perfect

  • We need to learn proper practice, so we train more effectively
  • Rather, we need to think about how neurons process and represent info, and how represented knowledge interacts with the env to shape learning.
    *
