Exam 2: Blood Circulation of the CNS (be able to identify the arteries that supply given parts of the CNS) Flashcards
An issue with which artery / vein would cause issues with:
- Medial temporal lobe (uncus, hippocampus, amygdala)
- Basal ganglia (tail of caudate, globus pallidus)
- Inferior part of posterior limb of internal capsule
- Optic tract
- Lateral geniculate nucleus
- Cerebral peduncle
Anterior Choroidal Artery
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/377/862/a_image_thumb.png?1455512815)

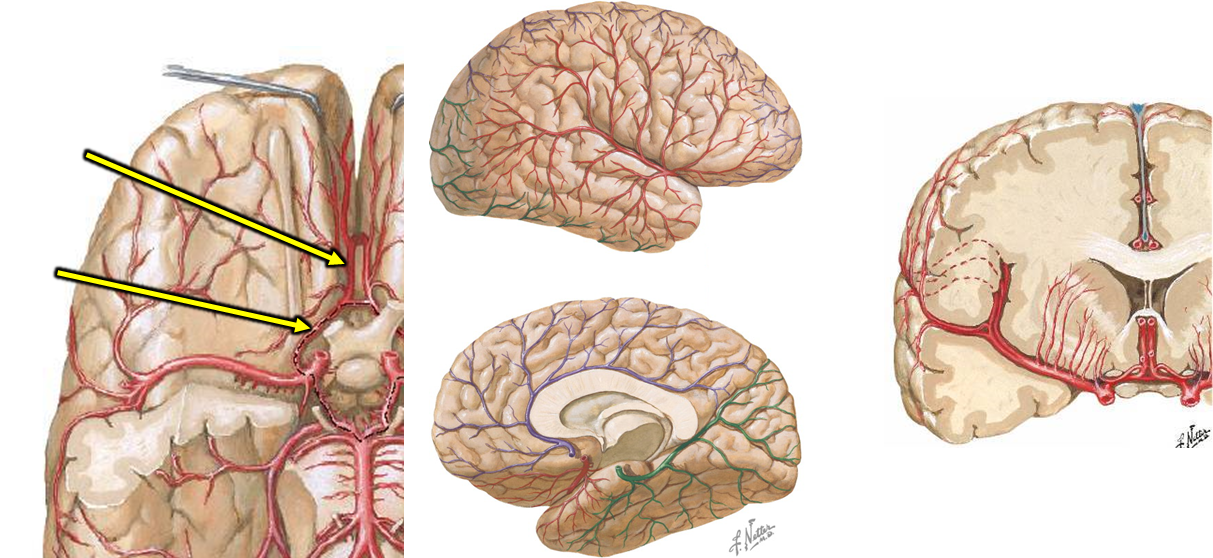

An issue with which artery / vein would cause issues with:
• Segments A1-A5
(be able to recognize the segments on MRI)
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/377/918/q_image_thumb.png?1455517470)
Anterior Cerebral Artery
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/377/918/a_image_thumb.png?1455512792)

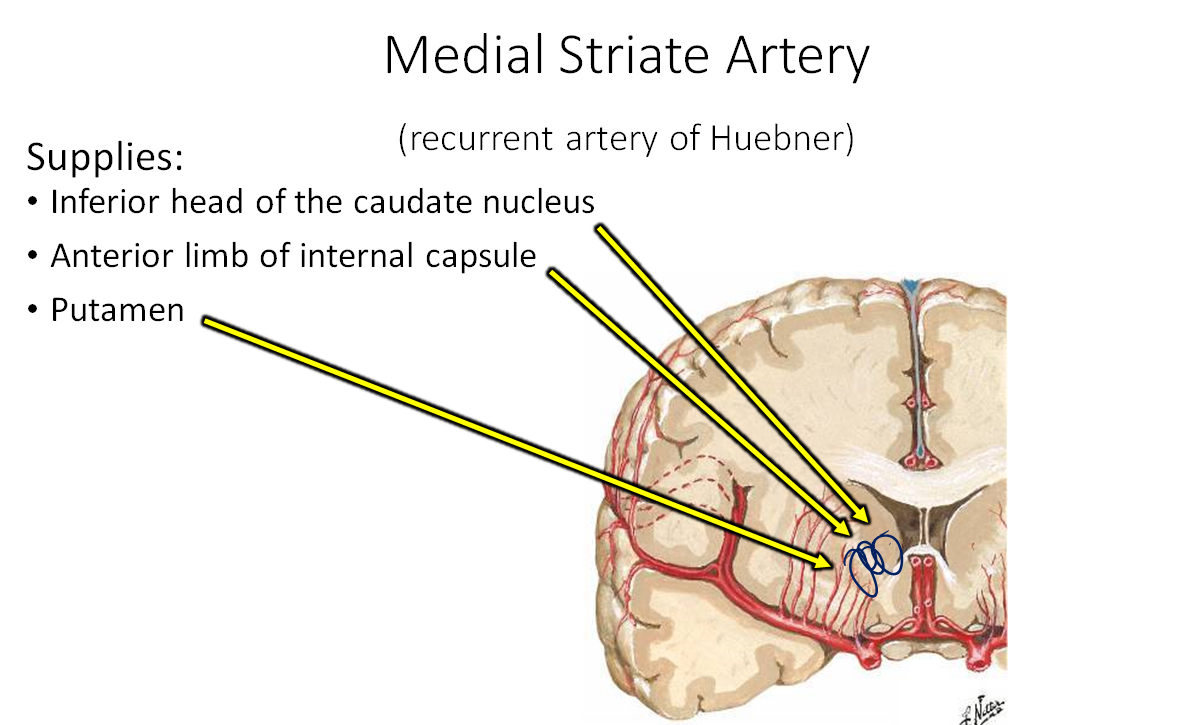

An issue with which artery / vein would cause issues with:
• Inferior head of the caudate nucleus
• Anterior limb of internal capsule
• Putamen
Medial Striate Artery
(recurrent artery of Huebner)
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/378/227/a_image_thumb.png?1455512761)

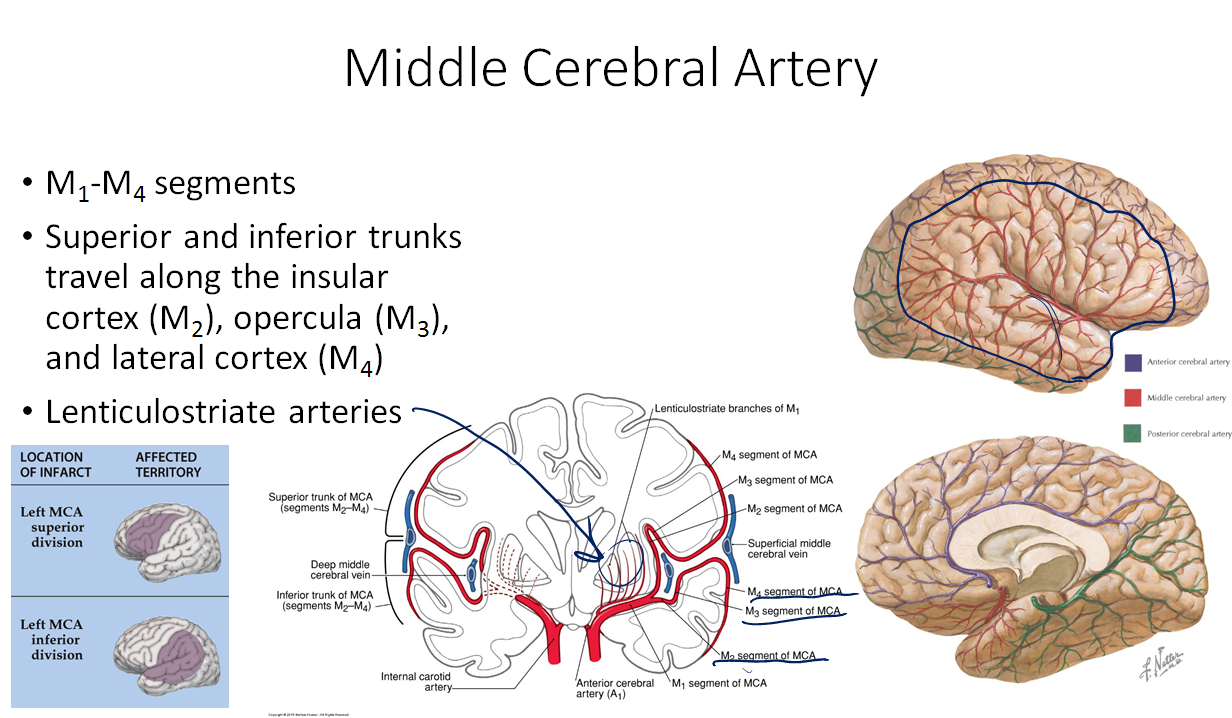

An issue with which artery / vein would cause issues with:
- M1-M4 segments
- Superior and inferior trunks travel along the insular cortex (M2), opercula (M3), and lateral cortex (M4)
- Lenticulostriate arteries
Middle Cerebral Artery
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/378/256/a_image_thumb.png?1455512736)

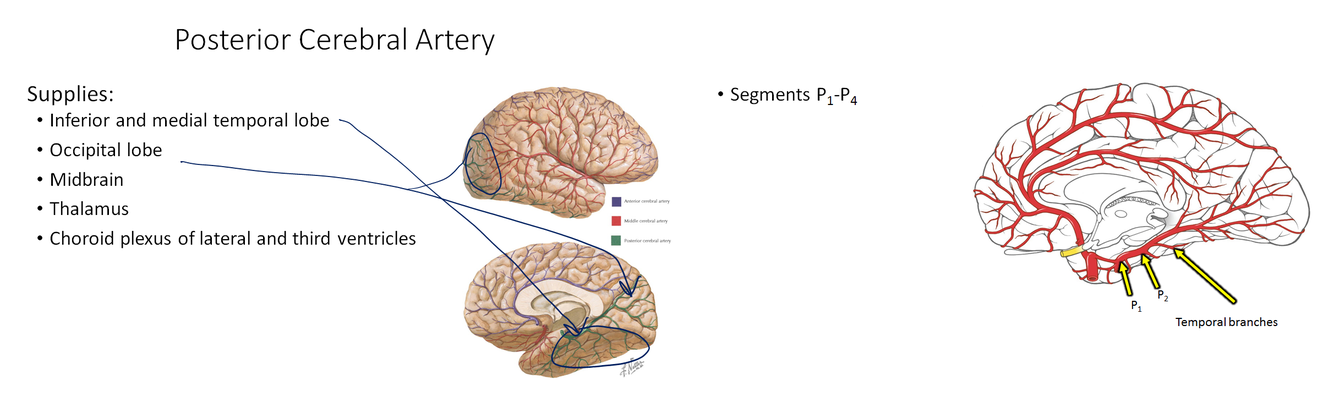

An issue with which artery / vein would cause issues with:
- Inferior and medial temporal lobe
- Occipital lobe
- Midbrain
- Thalamus
- Choroid plexus of lateral and third ventricles
Posterior Cerebral Artery
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/378/231/a_image_thumb.png?1455513065)

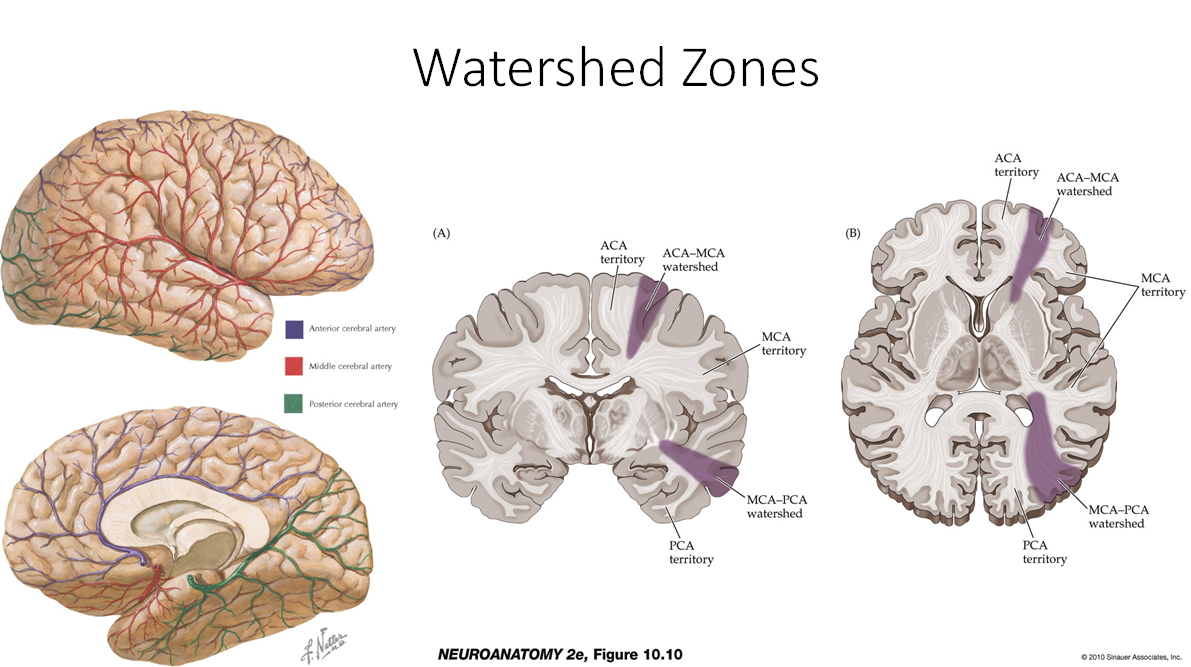

An issue with which artery / vein would cause issues with:
• Watershed Zones
ACA-MCA
MCA-PCA
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/378/960/a_image_thumb.png?1455513158)

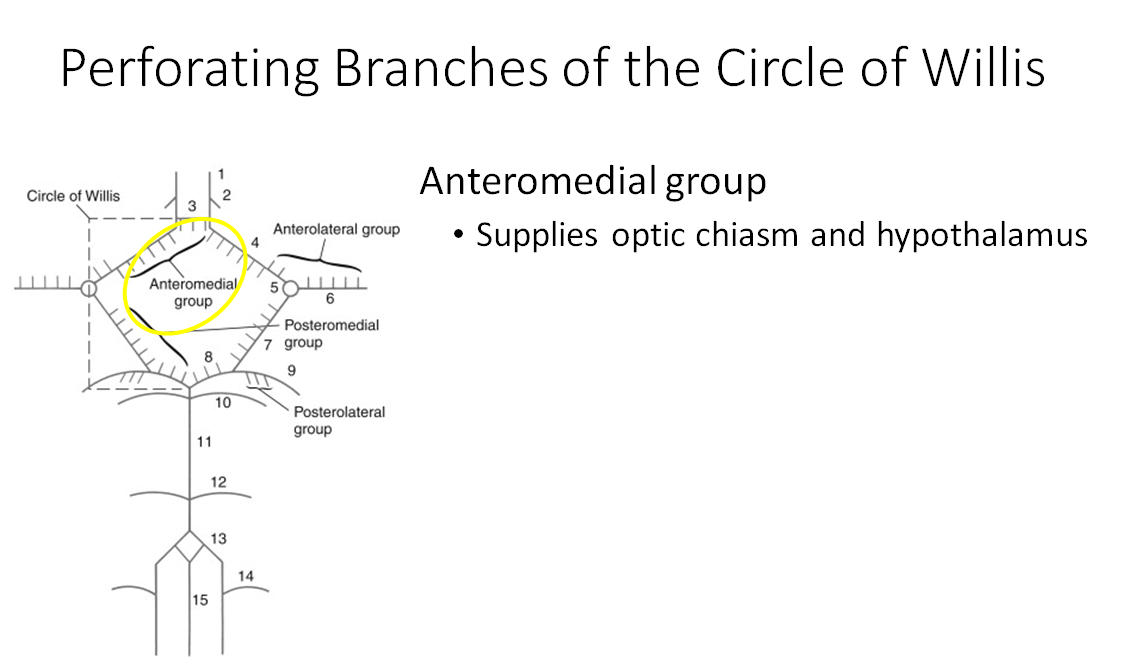

An issue with which artery / vein would cause issues with:
• optic chiasm and hypothalamus
Perforating Branches of the Circle of Willis:
Anteromedial group
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/378/235/a_image_thumb.png?1455513271)
An issue with which artery / vein would cause issues with:
- lenticulostriate
- anterior perforated substance
- interior of hemisphere (basal ganglia)
Perforating Branches of the Circle of Willis:
Anterolateral group
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/379/049/a_image_thumb.png?1455513321)
An issue with which artery / vein would cause issues with:
- crus cerebri, middle/caudal hypothalamus, and thalamus
- posterior perforated substance
Perforating Branches of the Circle of Willis:
Posteromedial group
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/379/081/a_image_thumb.png?1455513387)

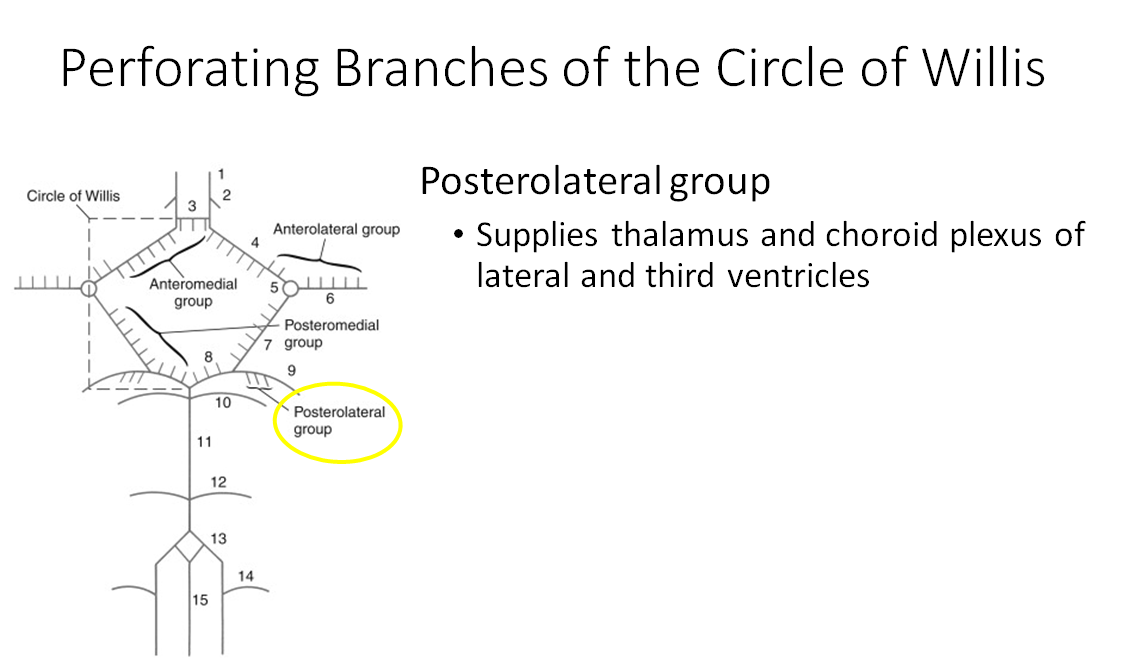

An issue with which artery / vein would cause issues with:
• thalamus and choroid plexus of lateral and third ventricles
Perforating Branches of the Circle of Willis:
Posterolateral group
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/379/329/a_image_thumb.png?1455513491)

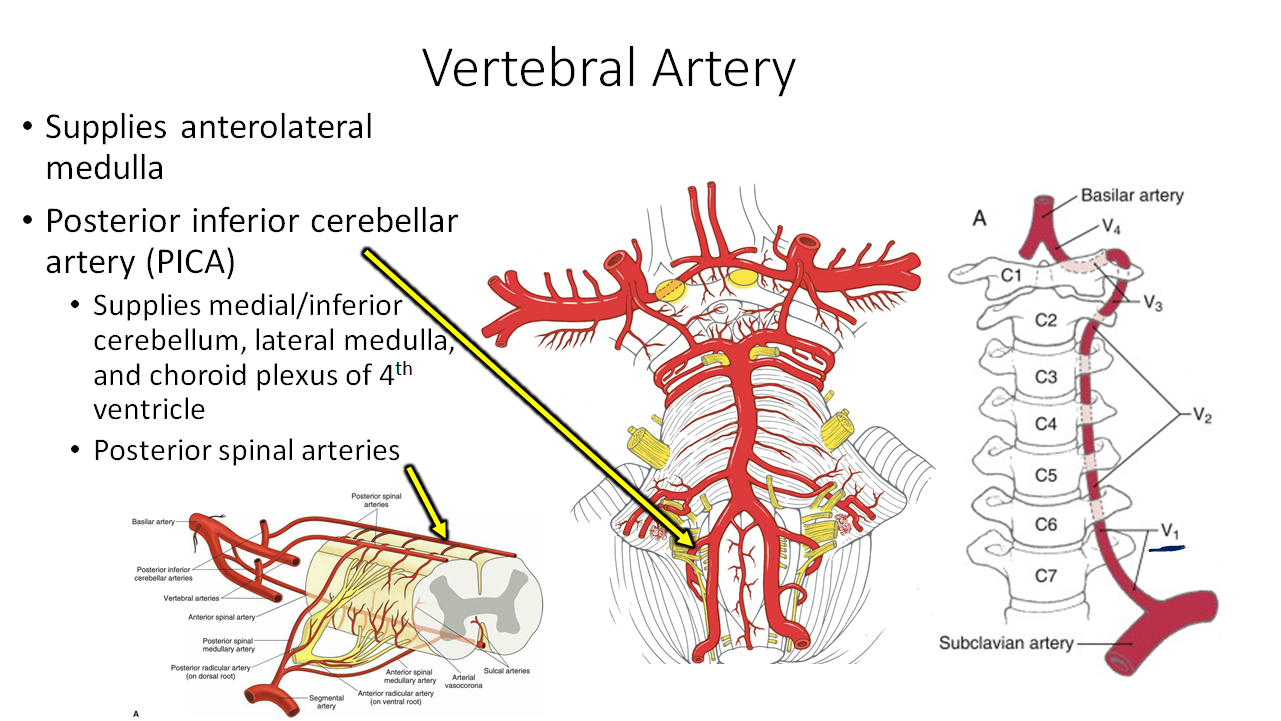

An issue with which artery / vein would cause issues with:
• anterolateral medulla
Vertebral Artery
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/379/382/a_image_thumb.png?1455513614)
An issue with which artery / vein would cause issues with:
- medial/inferior cerebellum, lateral medulla, and choroid plexus of 4th ventricle
- Posterior spinal arteries
Posterior inferior cerebellar artery (PICA)
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/379/615/a_image_thumb.png?1455513797)

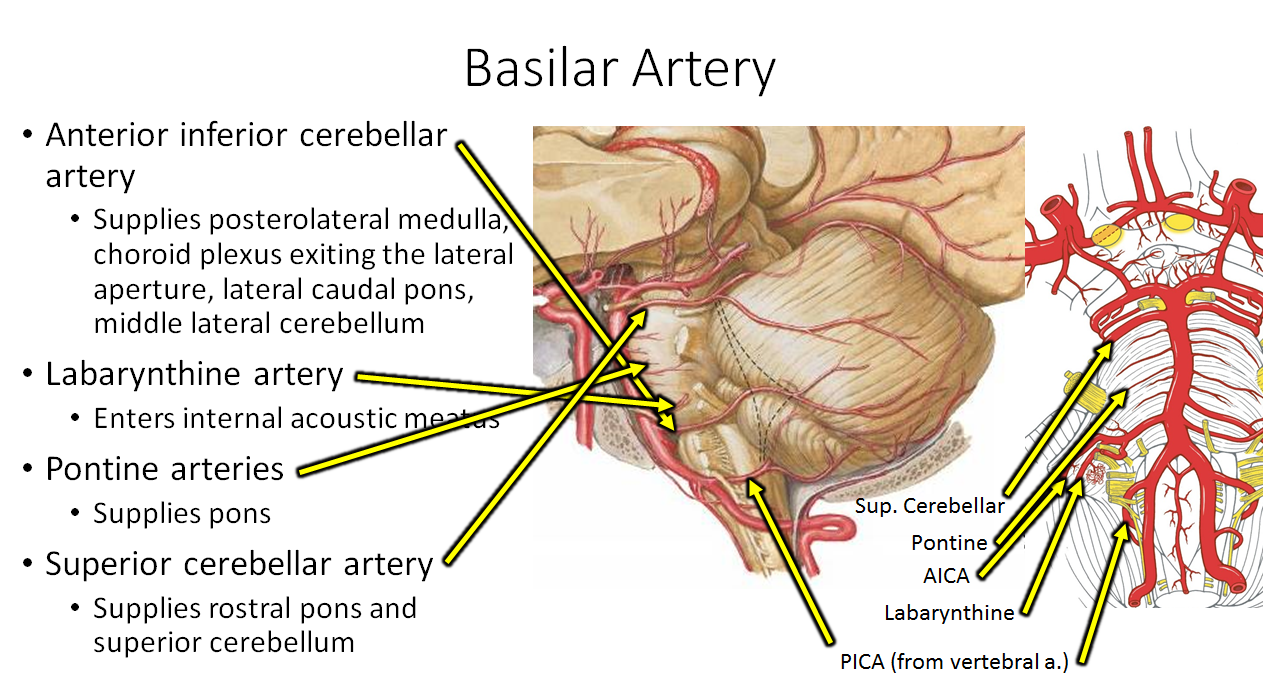

An issue with which artery / vein would cause issues with:
- posterolateral medulla, choroid plexus exiting the lateral aperture, lateral caudal pons, middle lateral cerebellum
- internal acoustic meatus
- pons
- rostral pons and superior cerebellum
Basilar Artery
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/379/853/a_image_thumb.png?1455514152)

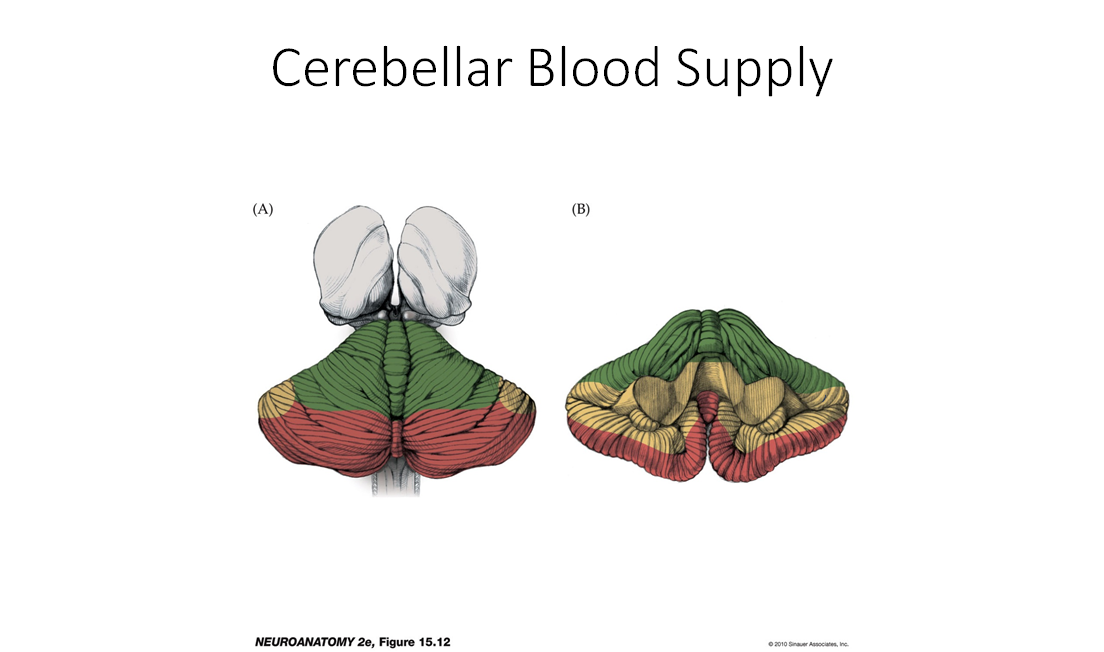

What artery supplies each of the areas of the Cerebellum?
• red, yellow, and green areas?
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/380/395/q_image_thumb.png?1455514260)
Cerebellar Blood Supply:
red: PICA
yellow: AICA
green: SCA
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/380/395/a_image_thumb.png?1455514290)

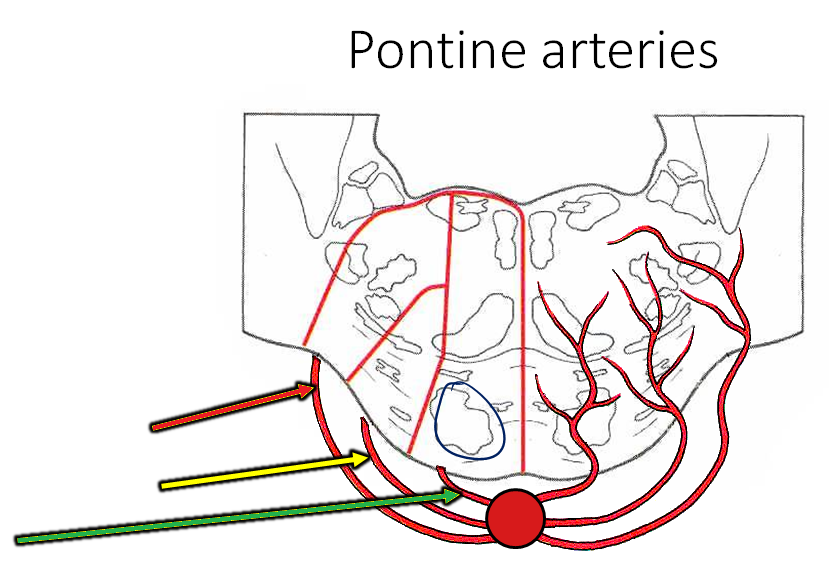

What artery supplies each of the areas of the Pon?
• red, yellow, and green areas?
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/380/551/q_image_thumb.png?1455514608)

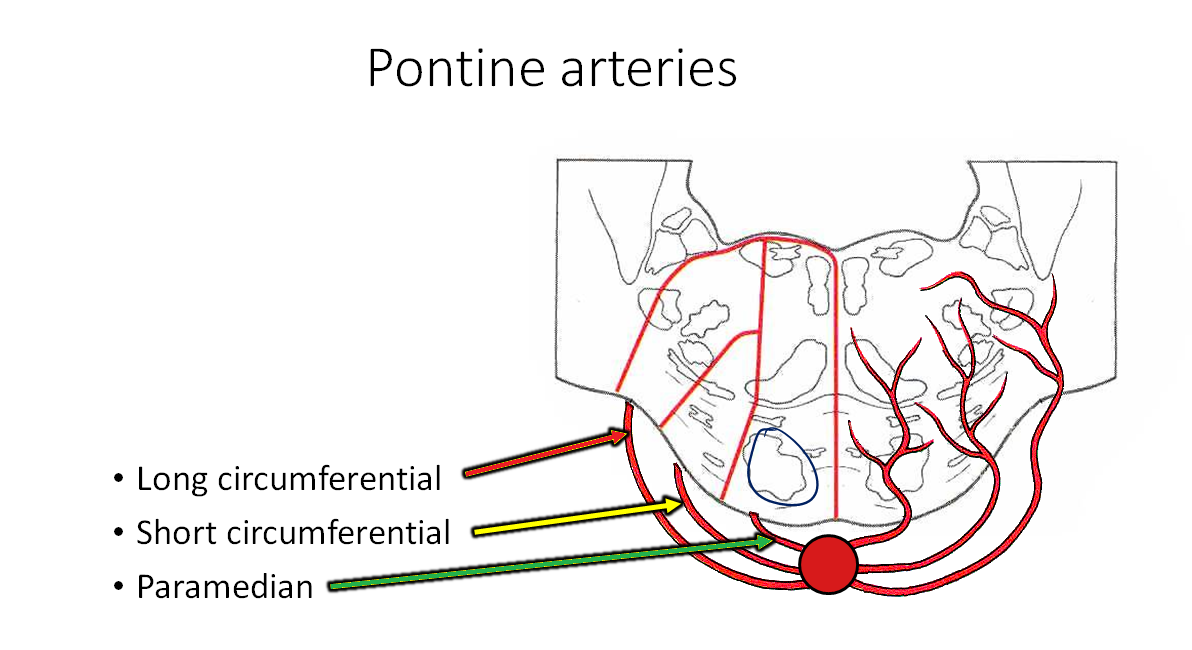

Pontine arteries:
red: Long circumferential
yellow: Short circumferential
green: Paramedian
![](https://s3.amazonaws.com/brainscape-prod/system/cm/180/380/551/a_image_thumb.png?1455514632)
