Rigging 2

Question 1

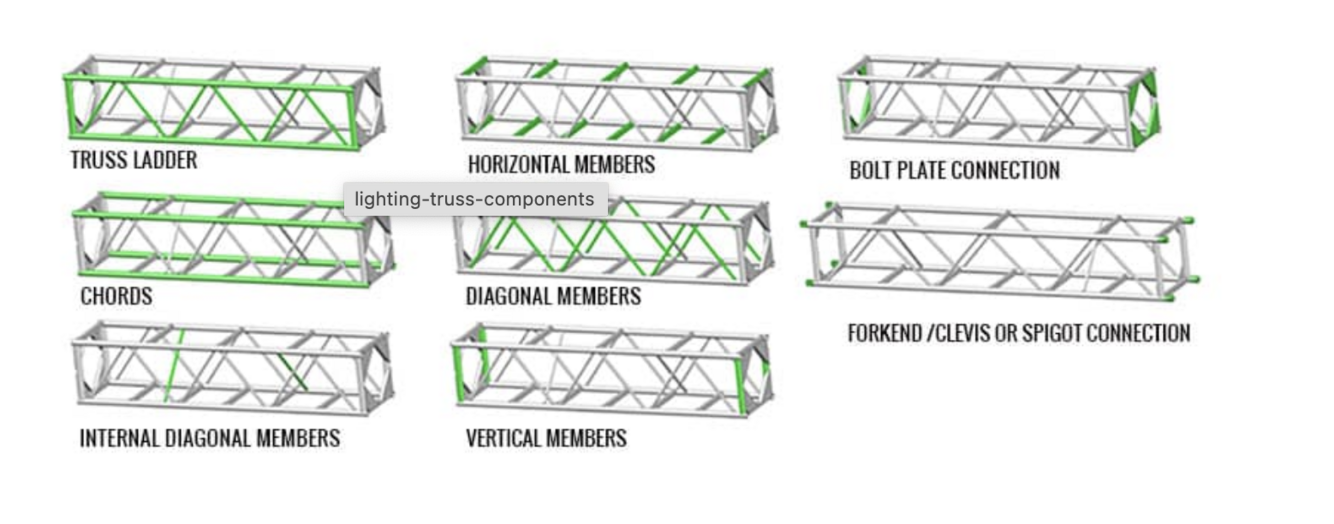

parts of truss

Answer 1

I’m going to call what they are calling the horizontal members the ‘cross members’

Question 2

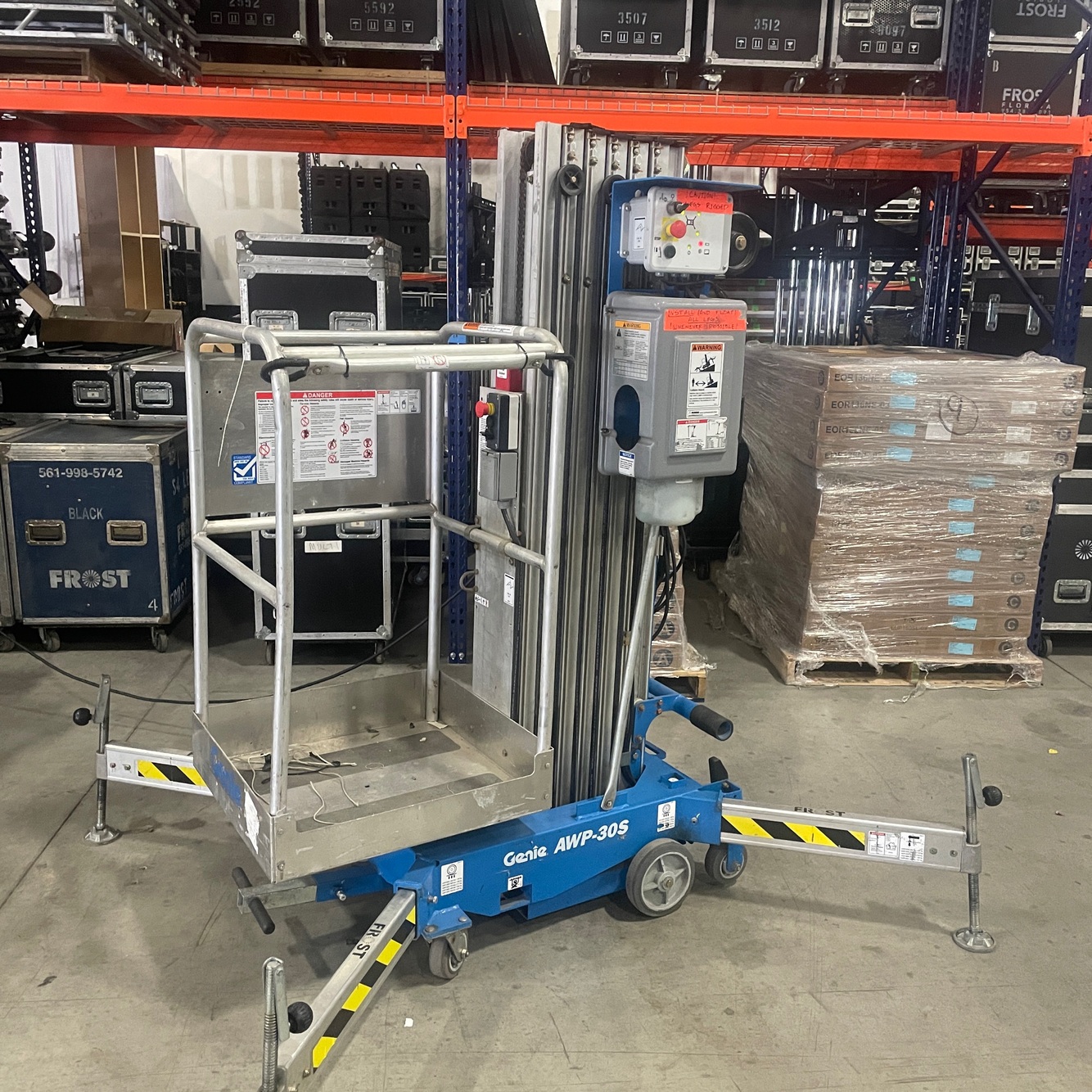

genie lift legs
- there is an order to it like feeder plugging/unplugging feeder

Answer 2

• rear legs then front legs to go up

• front legs then rear legs to move around

• rear legs are first down, last up

Question 3

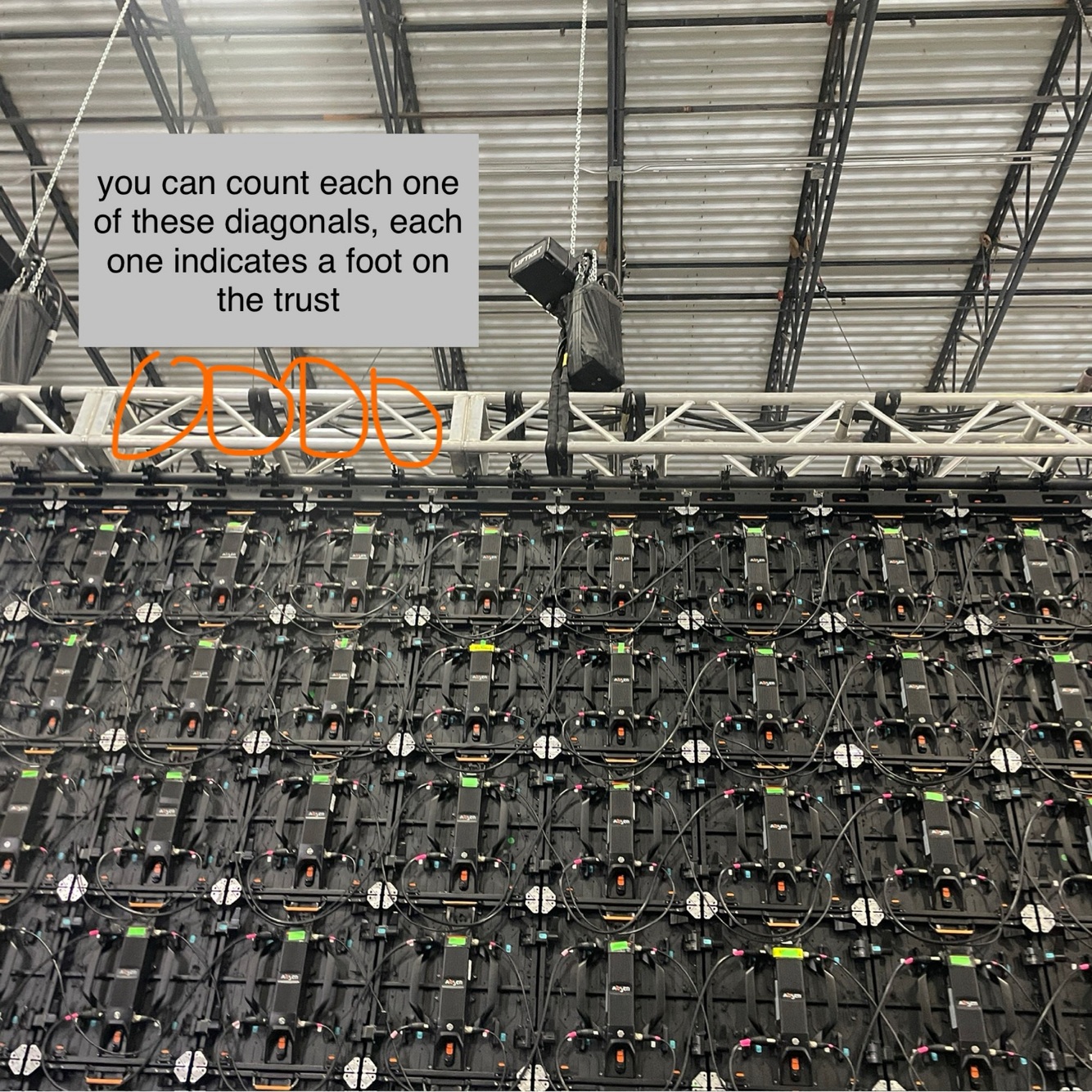

Truss length estimator

Answer 3

you do have to be careful though, there are some trusses like a 2 1/2 foot for example that only have two diagonals but there’s some extra space on the trust that accounts for the extra half a foot
