ECG Flashcards by sam Leckie

How many leads is a proper ECG ?

How well did you know this?

Not at all

Perfectly

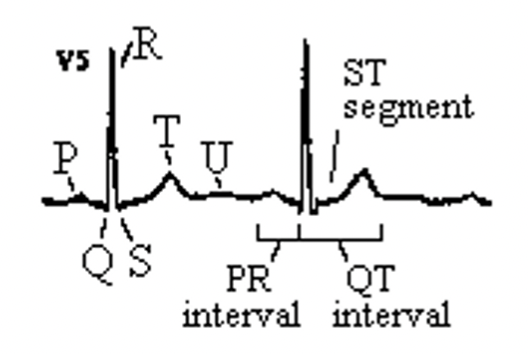

What is each feature on an ECG ?

P wave = atrial contraction (depolarisation)
PR interval = AV nodal conduction
QRS = ventricular contraction (depolarisation)
T wave is ventricular repolarisation (repolarisation)
QT interval = total ventricular activity

How well did you know this?

Not at all

Perfectly

What is heart block ?

Delay/interruption in the electrical signal traveling from atria to ventricules
-e.g. prolonging PR interval

How well did you know this?

Not at all

Perfectly

What is on the x and y axis of an ECG recording ?

X-axis
-25mm/s
-small square = 0.04ms
-large square = 0.2ms

Y-axis
-10 mm = 1 mV

Can be adjusted

How well did you know this?

Not at all

Perfectly

How can heart rate be calculated from an ECG ?

Heart rate = 300 ÷ number of large squares between two R waves

How well did you know this?

Not at all

Perfectly

What is the hearts axis ?

Overall (average sum of) direction of ventricular depolarisation
-ECG changes dependeing on heart position/orientation

Hearts electrical axis

How well did you know this?

Not at all

Perfectly

What are the steps of a systematic ECG interpretation ?

Confirm details
Rate
Rhythm
Axis
QT interval
Qtc (corrected QT interval)
Old ECGs

How well did you know this?

Not at all

Perfectly

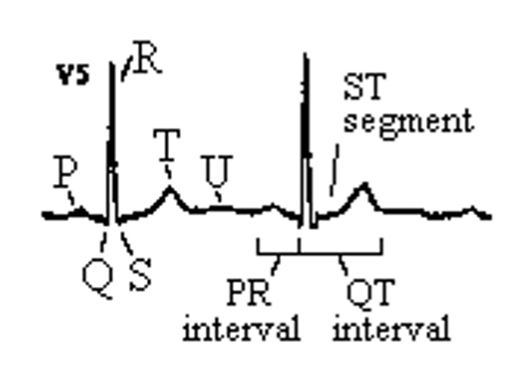

What is this

Normal ECG

How well did you know this?

Not at all

Perfectly

What do positive and negative chages mean on an ECG

Positive change = electricity flowing towards lead

Negative change = electricity flowing away from lead

How well did you know this?

Not at all

Perfectly

Which leads are limb and which are chest leads ?

Limb leads
-I, II, III, aVR, aVL, aVF
-Frontal plane

Chest leads
-V1–V6
-Horizontal plane

How well did you know this?

Not at all

Perfectly

Which are the inferior leads ?

leads II, III, and aVF
-Look at the heart from below
-Upright P waves in these leads indicate normal SA-to-AV depolarisation

How well did you know this?

Not at all

Perfectly

What does present P waves with abnormal relation to QRS complex indicate ?

Heart block
-Conduction to ventricles is delayed or absent

How well did you know this?

Not at all

Perfectly

What do absent P waves with an irregularly irregular ventricular rhythm indicate ?

Atrial fibrilation

How well did you know this?

Not at all

Perfectly

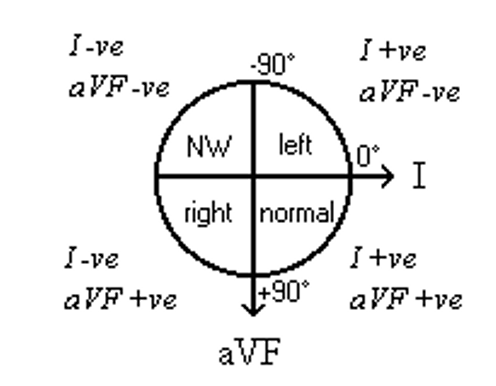

How can the axis of depolarisation be determined ?

I and aVF +ve = normal axis

I and aVF -ve = axis in the Northwest Territory

I -ve and aVF +ve = right axis deviation

I +ve and aVF -ve and lead II +ve = normal axis

lead II -ve = left axis deviation

0 degrees = left, +90 degrees = down

QRS complexes negative or positive

How well did you know this?

Not at all

Perfectly

What is a normal heart axis ?

-30° to +90°

How well did you know this?

Not at all

Perfectly

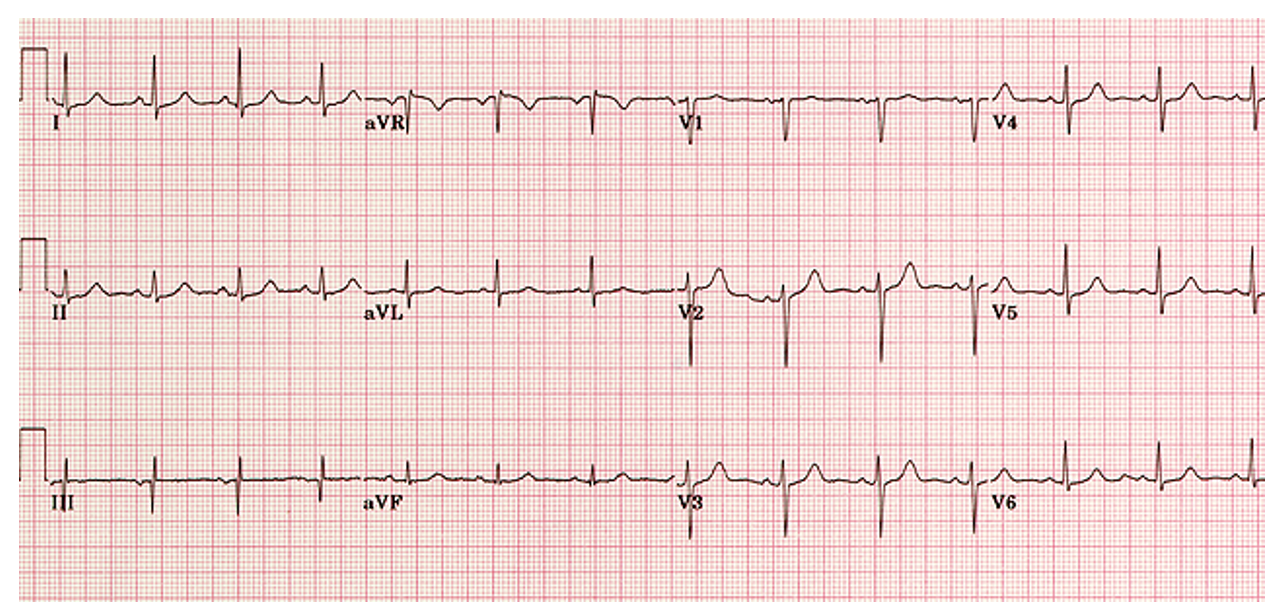

What is this ?

Left axis deviation
-Lead II is negative
-aVF is negative (electricty moves away from feet)

How well did you know this?

Not at all

Perfectly

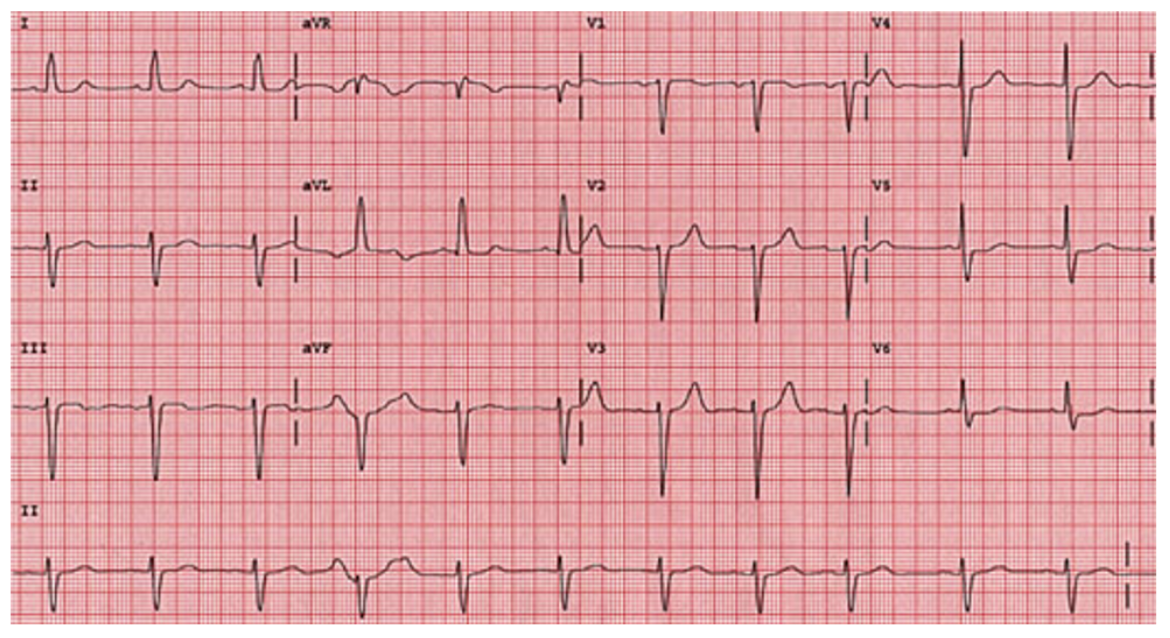

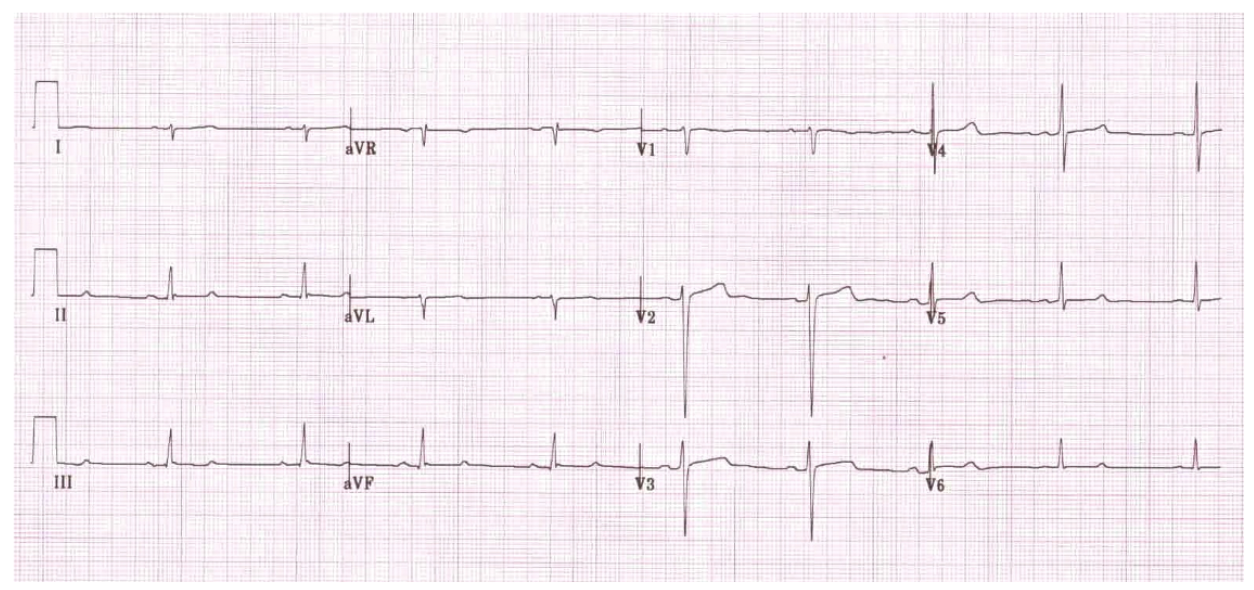

What is this ?

Right axis deviation
-I -ve
-aVF +ve

How well did you know this?

Not at all

Perfectly

What is a normal PR interval ?

3-5 small squares (0.12 – 0.2ms)

How well did you know this?

Not at all

Perfectly

Give examples of P wave abnormalities

P pulmonale
P mitrale
Atrial ectopic

How well did you know this?

Not at all

Perfectly

What is P Pulmonale

Tall P wave (in limb leads, esp II)
-right atrial enlargement (hypertrophy or dilation)
-right-sided heart strain due to lung problems e.g. severe lung disease, pulm hypertension

How well did you know this?

Not at all

Perfectly

What is P Mitrale

Notched or double-peaked P wave; resembles M
-Left atrial enlargement (hypertrophy or dilation) e.g. due to mitral valve disease (stenosis/regurgitation) or hypertension
-Can lead to Afib

How well did you know this?

Not at all

Perfectly

What is atrial ectopic ?

P waves that originate outside the SA node
ECG can be:
-abnormal shape
-comes early
-different direction (e.g. inversion in II, III, aVF)

How well did you know this?

Not at all

Perfectly

Give examples of PR issues

Short PR interval E.g. Lown Ganong Levine syndrome
Heart block
Delta wave

Abnormalities tell us about conduction problems.

How well did you know this?

Not at all

Perfectly

What is Wolf-Parkinson-White syndrome ?

Causes delta wave
-Accessory pathway (Bundle of Kent) bypasses AV node
ECG:
-Short PR interval
-Slurred upstroke at start of QRS (delta wave)
-Wide QRS

Clinical consequence: reentrant tachyarrhythmias

How well did you know this?

Not at all

Perfectly

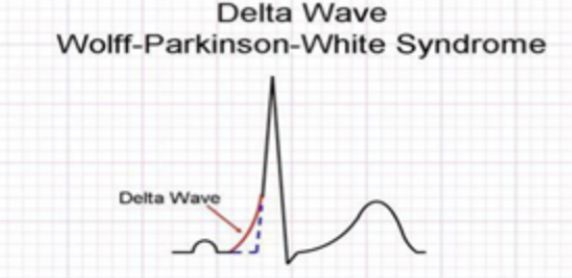

What is this ?

WPW -Short PR interval -Slurred upstroke at start of QRS (delta wave) -Wide QRS

What are the three main types of bradycardia ?

Sinus bradycardia (chill and youre really fit) Sick sinus syndrome (SA cooked) Heart block

What are the types of heart block ?

1st Degree 2nd Degree -Mobitz type 1 (Wenkebach) -Mobitz type 2 3rd Degree | 3rd is the worst

What is first degree heart block ?

A bradycardia; least bad type of heart block -Slow but existent conduction -Prolonged PR interval; av node really slow -If assymptomatic doesn’t need treaed

What is this ?

First degree heart block

What is mobitz type one bradycardia ?

Type of second degree heart block -a.k.a wenkebach -Usually benign/physiological cuased by high vagal tone e.g. young/fit people -Can occur at night when higher vagal tone Progressive lengthening of the PR interval which results in a P wave that fails to conduct a QRS; dropped beat

What is this ?

Mobitz type one Progressive lengthening of the PR interval which results in a P wave that fails to conduct a QRS; dropped beat

What is mobitz type 2 bradycardia ?

Type of second degree heart block -Each P wave associated with a QRS complex until one is not -Constant PR interval; may be no pattern/ratios -Usually caused by conduction system failure, especially at the His-Purkinje system -Often progresses to 3rd degree AV block

What is this ?

Mobitz type 2 -Each P wave associated with a QRS complex until one is not -Constant PR interval; may be no pattern/ratios

What is 3rd degree heart block ?

Complete heart block -No asssociation between P and QRS. -QRS still exists because ventricular contractions can occur without SA node relying on ventricular backup mechanism -Get this guy a pacemaker rn

What is this ?

3rd degree heart block -No association between P and QRS

How can tachycardia be identified from an ECG ?

No obvious P waves -may be hidden in QRS or T waves

What are the two main divisions of tachycardia ?

Broad and Narrow QRS

What are the narrow complex tachycardias ?

SVTs usually benign esp in young people but uncomfortable -If youre in SVT for a while and go back to sinus you get a big diuresis; histroy | WPW causes AVRT

What are the broad complex tachycardias ?

What is the difference between broad and narrow complex tachycardias ?

Narrow -Ventricles activated normally; rhythm is supraventricular Broad -Ventricular activation is abnormal or slow -Could be ventricular in origin

What is this ?

Mono-morphic VT -Broad regular QRS -Spooky -No P wave

What is this ?

Poly-morphic VT -Broad regular QRS -Spooky -e.g. tdp (as shown)

What is a ling QTc linked to ?

Sudden death

What is this ?

AF with LBBB -No P waves -Broad, irregularly irregular QRS rhythm

What is this ?

AF -No P waves -Narrow, irregularly irregular QRS rhythm -Top bit beats rellay fast and only some get conducted down from av node

What is this ?

Narrow complex SVT -Reguklar

What is this ?

Atrial flutter -Has a narrow regular QRS -Type of SVT

What can cause a broad QRS complex ?

Broad QRS = 3 small squares or .12ms -Ectopic ventricular beats (any beat that starts in the ventricles spreads slowly) -Bundle branch block -VT -Pacemakers (implant)

How does LVH affect QRS complex

Very tall QRS complexes; especially in left-sided leads QRS duration is often normal, but the voltage is increased

What is this ?

Ventricular ectopic -Broad, bizarre QRS complex not preceded by a P wave, often followed by a compensatory pause -May be asymptomatic or cause palpitations.

What is this ?

LBBB -Broad QRS -W notch in V1 (mostly negative), M notch in V6 (mosty positive) (Left ventricle is activated late via slower cell-to-cell conduction from the right ventricle) | Mostly positive = majority of complex above line ?

What is this ?

RBBB -Broad QRS -M notch in V1 (mostly positive), terminal (S) portion widened/slurred in V6 (mostly positive) | Mostly positive = majority of complex above line ?

What is this ?

A pacemaker -Thin vertical pacing spikes just before many of the QRS complexes -Broad QRSs Pacemaker on right has LBBB appearance and vice versa

What is this ?

Left ventricular hypertrophy -Tall R waves in left precordial leads (V5 and V6) and lead I -Deep S waves in right precordial leads (V1 and V2)

What does a wider and deeper Q wave indicate ?

Part of the ventricle is electrically silent due to infarction

What do T wave changes suggest ?

T wave changes = myocardial stress or ischaemia

What does QTc prolongation bring with it >

Risk of torsades de pointes Causes: drugs, electrolyte abnormalities (↓K, ↓Mg, ↓Ca), ischaemia 👉 QTc = ventricular repolarisation duration & arrhythmia ris

What causes QTc shortening ?

Hypercalcaemia (rare but classic)

What is this ?

Inferior MI -ST elevation in II, III and aVF -Reciprocal changes in I and aVL | RCA block ## Footnote AVf ST elevtaion means inferior

What is this ?

Anterior MI -ST-elevation in leads V1-V6, I and aVL. -Maximum elevation in V3, maximal depression in III -later: Pathological Q-wave in the precordial leads V2 to V4-V5.

What is this ?

Lateral MI -ST elevation in I, aVL, V5, and V6, -often with reciprocal ST depression in III and aVF

What is this ?

Posterior MI -ST depression V1-V3 -Tall R waves -Upright T waves in V1–V3 -ST elevation in posterior leads V7–V9. ## Footnote often missed as doesnt produce classic ST elevation on the standard 12-lead ECG Instead, you see reciprocal (mirror-image) changes in the anterior leads.

What are common causes of T wave changes ?

Ischaemia LVH with strain pattern Hyperkalaemia Digoxin effects

How does LVH affect the T wave ?

Chronic -Down-sloping ST depression -Asymmetrical T-wave inversion Seen in left-sided leads (I, aVL, V5–V6)

What is this ?

NSTEMI/Ischaemia -ST depression (horizontal/down-sloping) in two contiguous leads -Symmetrical, deep T-wave inversion in contiguous leads -Changes over time -Early ischaemia; tall, broad T waves e.g. before ST Changes seen in leads of ischaemic tissue ## Footnote no ST elevation or New pathological Q waves as this is of STEMI

What is this ?

Hyperkalaemia Progressive changes, starting with; -Tall, peaked T waves, then -Prolonged PR interval -Flattened P waves -Widening QRS complex, -Sine wave pattern

What is this ?

Digoxin reverse tick -Scooped out depression in ST, often with T waves rising above baseline (normal with use) With toxicity -Reverse tick becomes more pronounced -T wave changes; e.g. flat/inverted -Shortened PR
